Digital cellular telephone docking station/retainer in center armrest, removing and installing: Notes

Open center armrest.
Release handset -1- from adaptor module -2- and disconnect adapter module cable connection -3- from armrest lid trim.

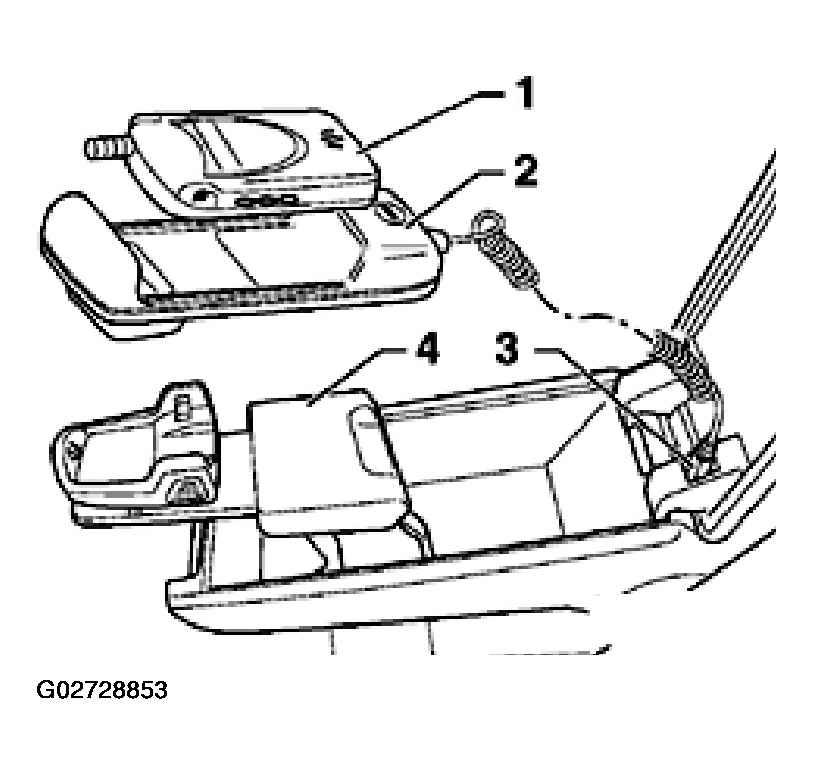

Fig 1: Removing Digital Cellular Telephone Docking Station/Retainer In Center Armrest

Courtesy of AUDI OF AMERICA, INC.

Remove bracket and docking station -4- from armrest, being sure to unclip telephone wiring connection.
See INTERIOR EQUIPMENT .
