20-pin connector I
NOTE:

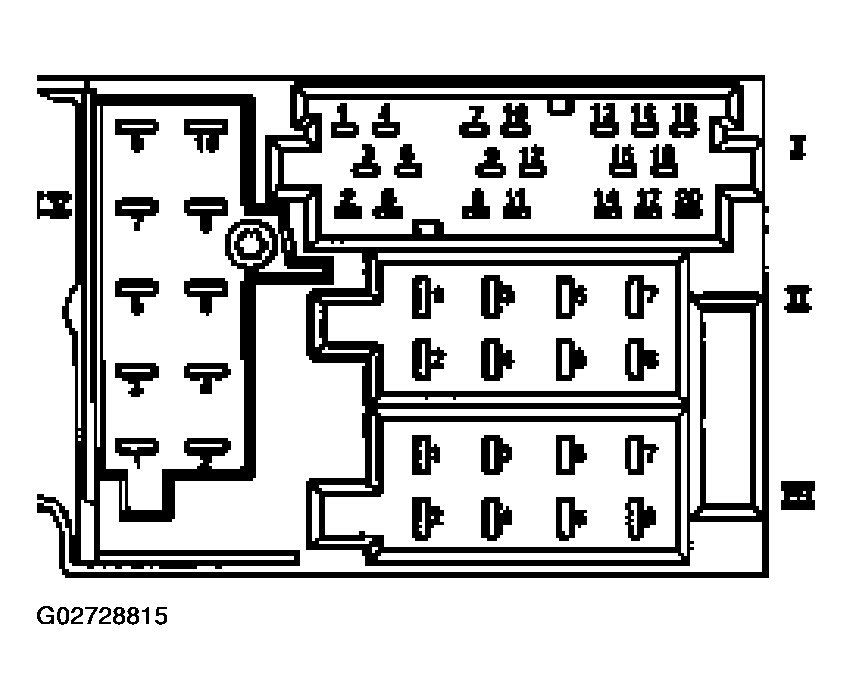

The following list refers to items in Fig 1
.
- 1 - Speaker line out (active speaker), left-rear
- 2 - Speaker line out (active speaker), right-rear
- 3 - Ground (GND) for active speaker (low frequency Ground)
- 4 - Speaker line out (active speaker), left-front
- 5 - Speaker line out (active speaker), right-front
- 6 - Switched positive supply (B+) for active speaker
- 8 - Clock signal for radio frequency display in instrument cluster
- 9 - Data signal for radio frequency display in instrument cluster
- 10 - Enable signal for radio frequency display in instrument cluster
- 13 - Data in signal for CD changer display in instrument cluster
- 14 - Data out signal for CD changer display in instrument cluster
- 15 - Clock signal for CD changer display in instrument cluster
- 16 - Power supply (B+)
- 17 - Switched positive supply (B+) for CD changer
- 18 - Ground (GND) for CD changer
- 19 - Signal wire left channel (CD low frequency-L)
- 20 - Signal wire right channel (CD low frequency-R)
