10-pin connector IV (red)

NOTE: The following list refers to items in Fig 1 .
  1. 1 - Telephone mute switch
  2. 3 - Telephone (low frequency +) (only with navigation equipment)
  3. 4 - Telephone (low frequency -) (only with navigation equipment)
  4. 5 - Navigation (low frequency +)
  5. 6 - Navigation (low frequency -)
  6. 7 - Navigation control wire
  7. 9 - Illumination (terminal 58d)
  8. 10 - CD Ground (GND)

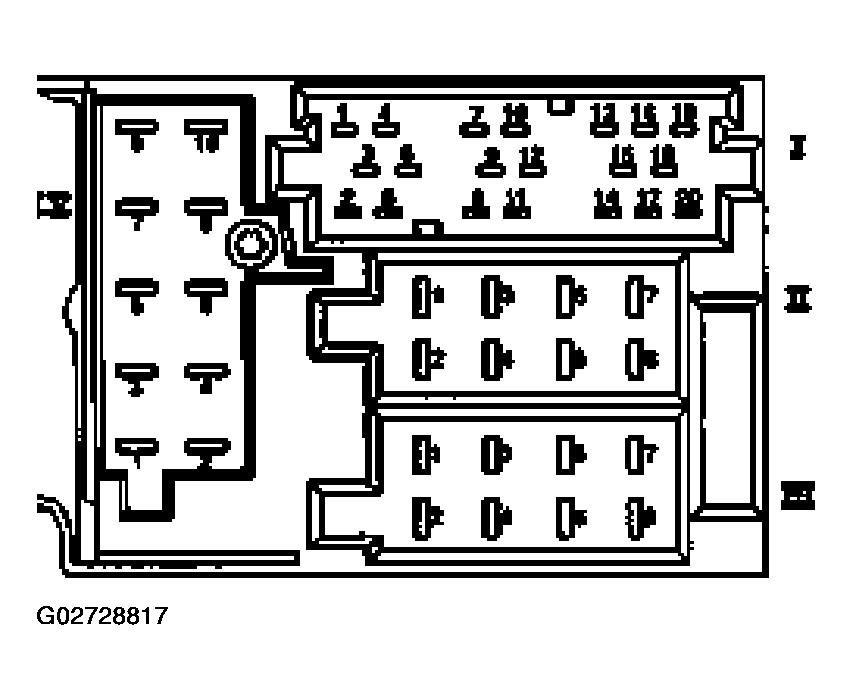

Fig 1: Identifying 8-Pin Connector III Terminals (Black) - Concert & Concert-BOSE Radio (m.y. 1998-1999)
G02728817Courtesy of AUDI OF AMERICA, INC.
