"Symphony" & "Symphony with BOSE" radio system (from m.y. 2000), layout: Notes

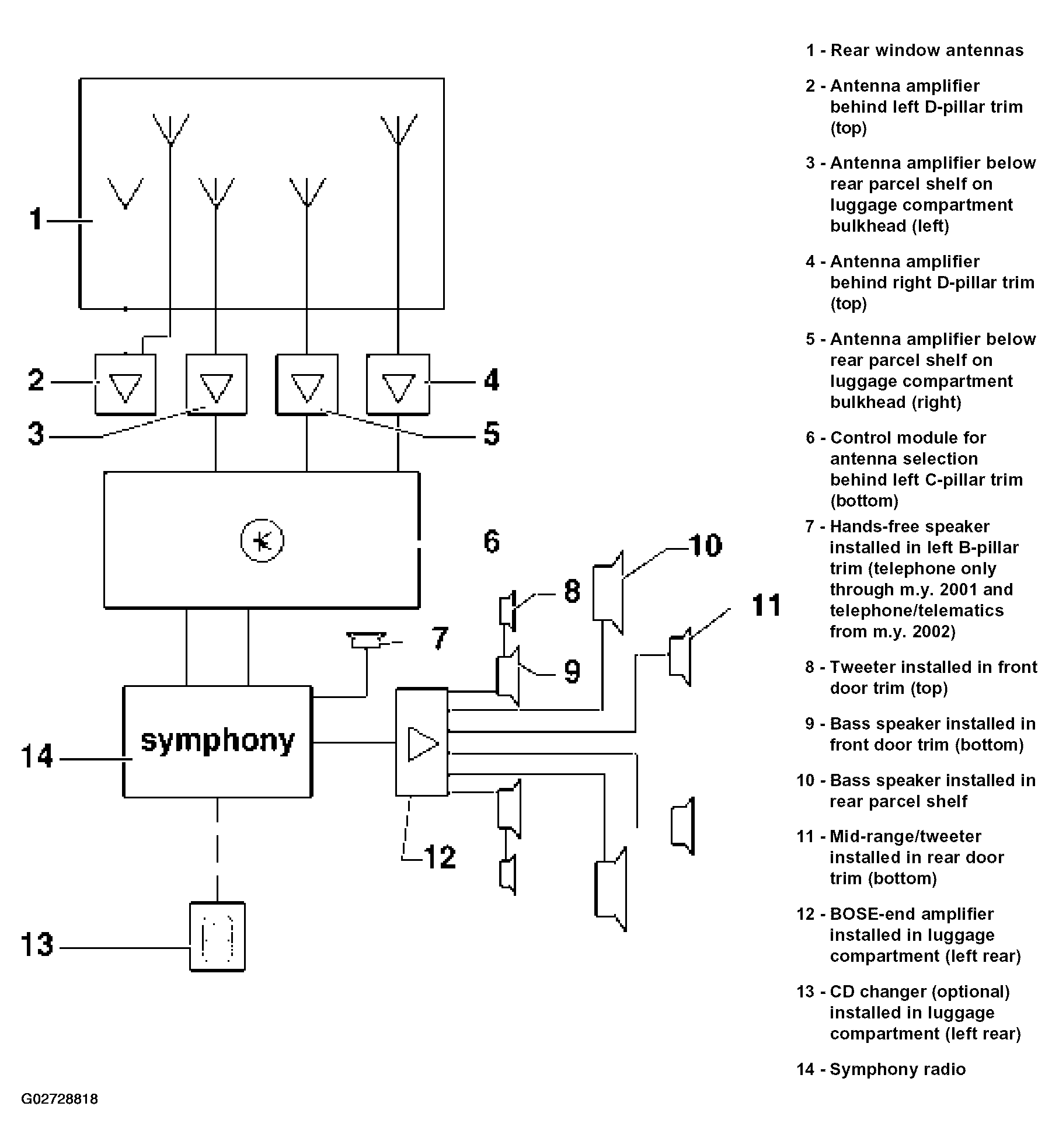

NOTE: The following list refers to items in Fig 1 .

1. Rear window antennas
2. Antenna amplifier behind left D-pillar trim (top)
3. Antenna amplifier below rear parcel shelf on luggage compartment bulkhead (left)
4. Antenna amplifier behind right D-pillar trim (top)
5. Antenna amplifier below rear parcel shelf on luggage compartment bulkhead (right)
6. Control module for antenna selection behind left C-pillar trim (bottom)
7. Hands-free speaker installed in left B-pillar trim (telephone only through m.y. 2001 and telephone/telematics from m.y. 2002)
8. Tweeter installed in front door trim (top)
9. Bass speaker installed in front door trim (bottom)
10. Bass speaker installed in rear parcel shelf
11. Mid-range/tweeter installed in rear door trim (bottom)
12. BOSE-end amplifier installed in luggage compartment (left rear)
13. CD changer (optional) installed in luggage compartment (left rear)
14. Symphony radio

Fig 1: Radio System Layout (Symphony And Symphony With Bose, From M.Y. 2000)

Courtesy of AUDI OF AMERICA, INC.
