Loudspeakers in rear doors, removing
>>
Notes
Loudspeakers in rear doors, removing: Notes
Remove rear door trim. See
DOOR TRIM, REAR
.
Disconnect all electrical connectors.
Remove three Phillips-head screws (arrows) and remove speaker -1-.

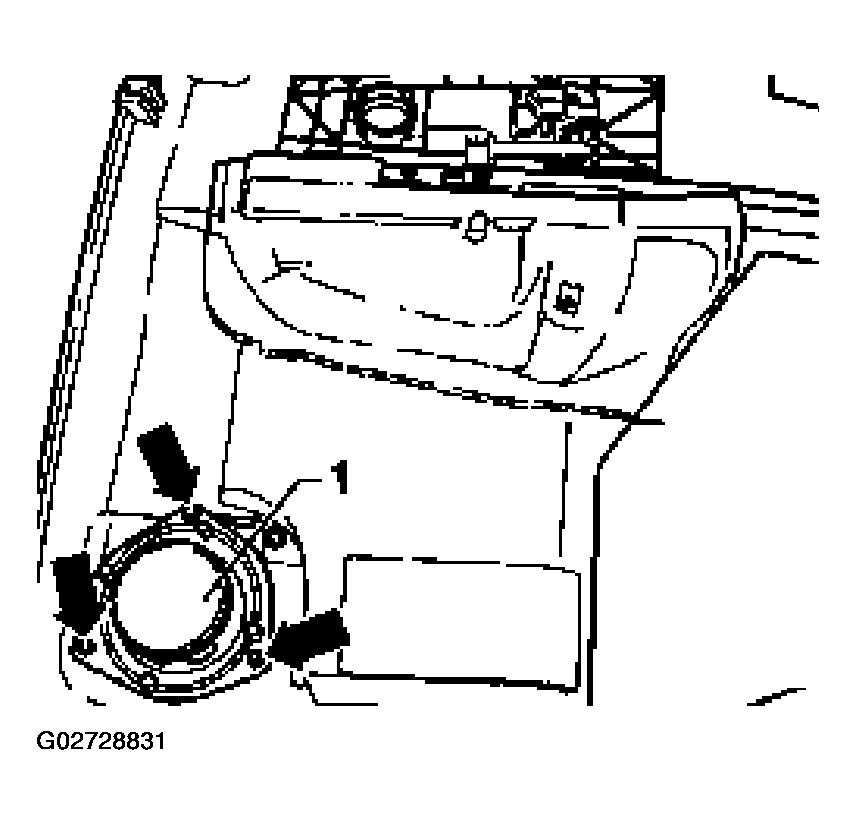

Fig 1: Removing Speaker Screws (Rear Doors)
Courtesy of AUDI OF AMERICA, INC.
