Antenna selection control module -J515- ("Symphony" radio), removing and installing: Removing

• Remove rear seat backrest.

  See SEATS FRAMES .

• Remove lower C-pillar trim.

  See INTERIOR TRIM .

• Remove securing nuts -2- (2 Nm).
• Disconnect electrical connector and remove control module -1-.

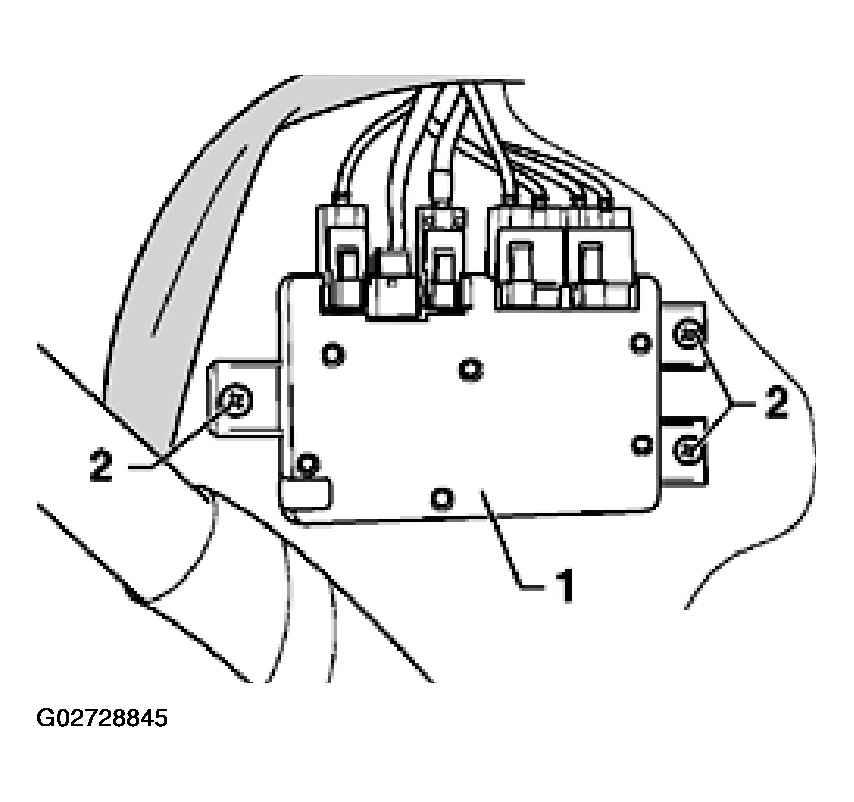

Fig 1: Antenna Selection Control Module And Securing Nuts - Symphony Radio

Courtesy of AUDI OF AMERICA, INC.
