Antenna amplifier - "Symphony" radio, removing and installing

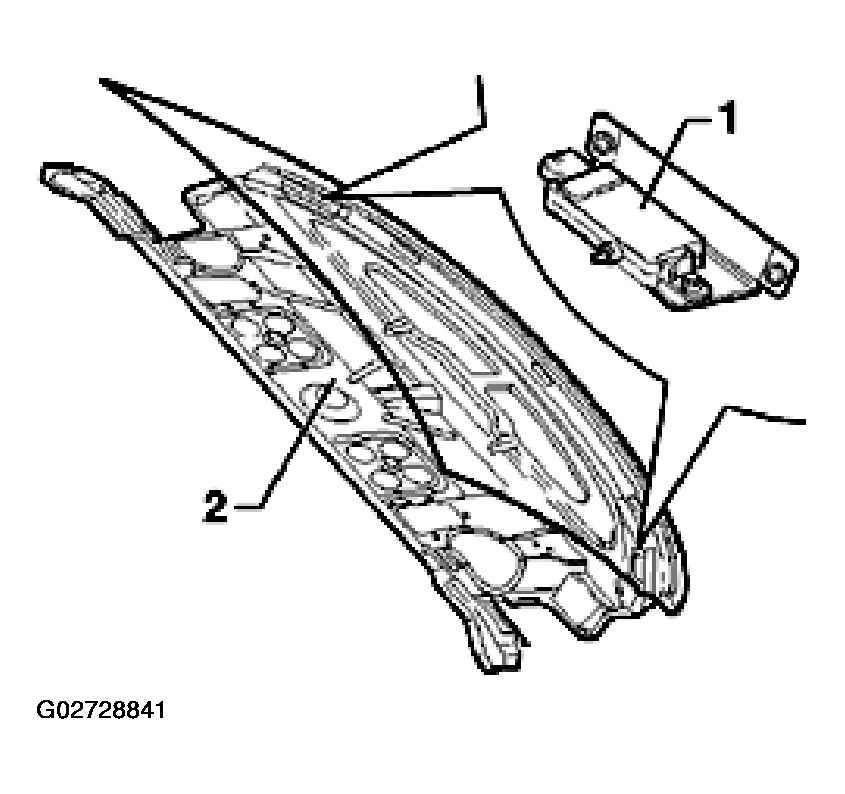

Two of the four antenna amplifiers radio -1- are secured by screws to the luggage compartment bulkhead -2-.
Fig 1: Identifying Antenna Amplifier Secured By Screws To The Luggage Compartment Bulkhead - Symphony Radio
- Remove rear parcel shelf.
See INTERIOR TRIM .

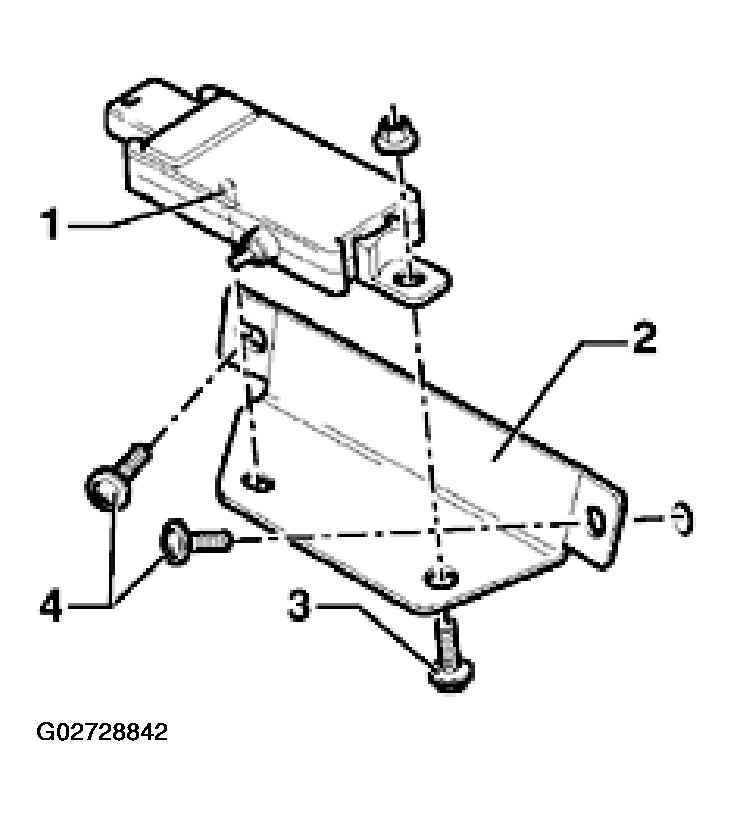

The two antenna amplifiers are each secured to a bracket -2- with a nut/bolt -3- (4.5 Nm) and locating pin -1-. The bracket is secured to the luggage compartment bulkhead with two Phillips-head screws -4- (4.5 Nm).
Fig 2: Identifying Antenna Amplifiers Secured To A Bracket With A Nut/Bolt And Locating Pin - Symphony Radio
Two additional antenna amplifiers are secured by screws to the left and right D-pillar (top).

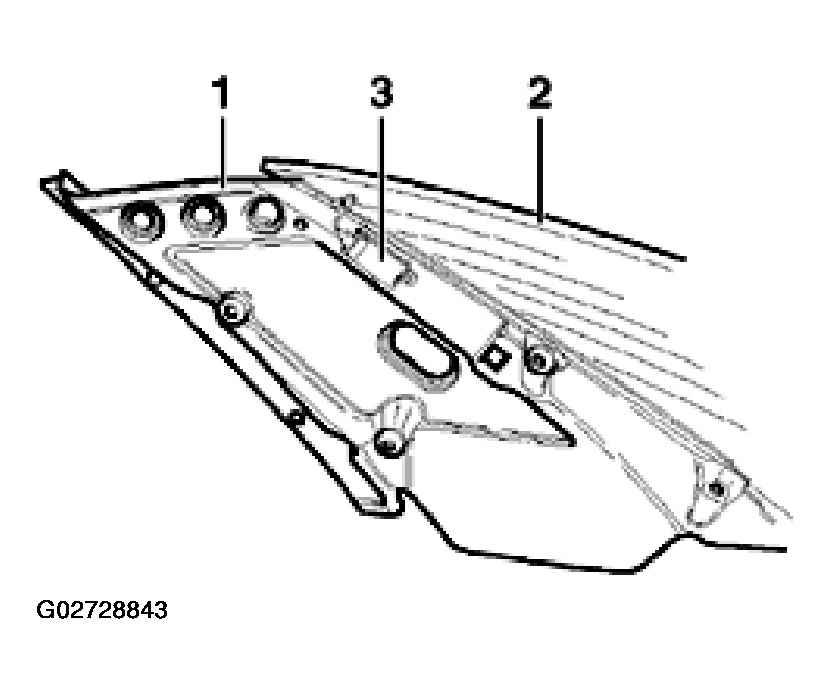

One antenna amplifier -3- is secured by screws to the D-pillar -1- below the rear window -2-.
Fig 3: Identifying Antenna Amplifier Secured By Screws To The D-Pillar Below The Rear Window - Symphony Radio
- Remove D-pillar trim.
See INTERIOR TRIM .

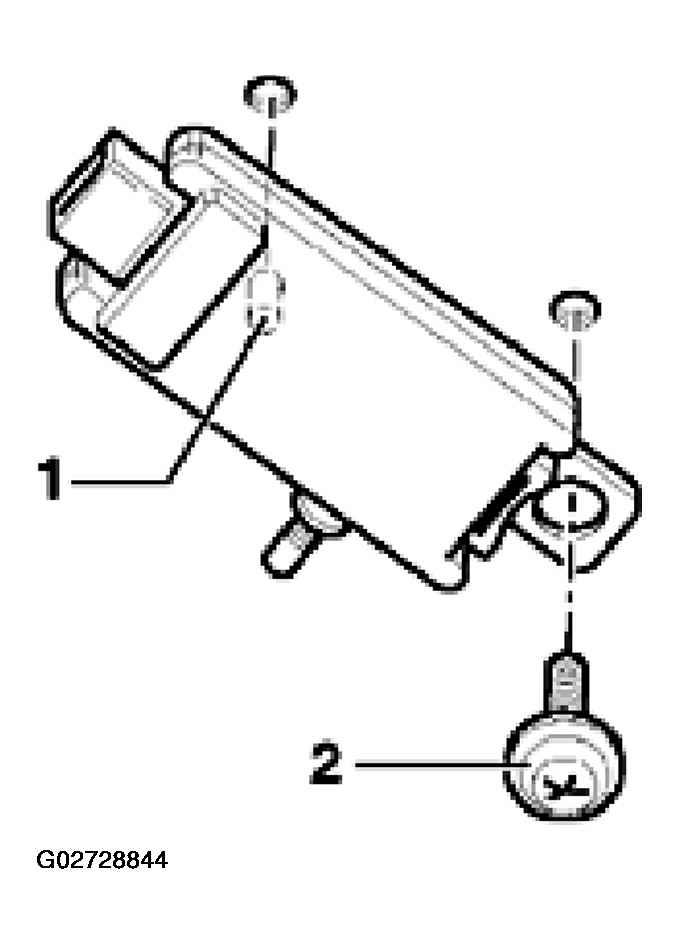

The antenna amplifiers are each secured to the D-pillar by a Phillips- head screw -2- (1.5 Nm) and nut -1-.
