Roof antenna for navigation/telematics (GPS) from m.y. 2002, removing and installing
>>
Removing
Roof antenna for navigation/telematics (GPS) from m.y. 2002, removing and installing: Removing
Remove rear reading lights.
See
REAR READING LIGHTS, REMOVING AND INSTALLING
.
Separate the electrical connections.
Remove nut (3.5 Nm) -arrow- and pull antenna out from opening

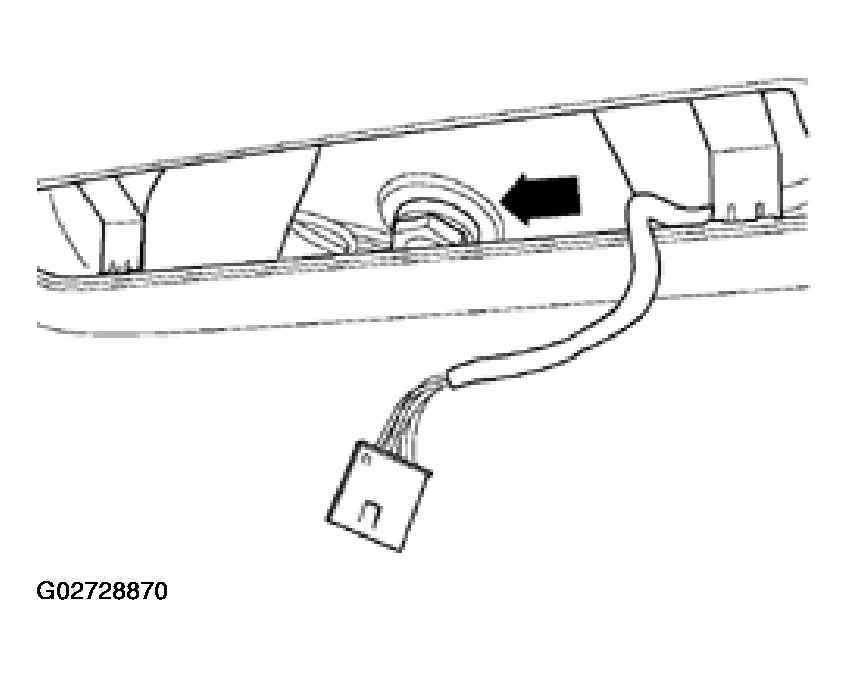

Fig 1: Removing Antenna Nut - Roof-Mounted GPS Antenna (From M.Y. 2002)
Courtesy of AUDI OF AMERICA, INC.
