All vehicles

4D0035195A: Part No. for radio (Symphony)
8E0035195B: Part No. for radio (Symphony US)
Radio: component designation
symphony II NP2: component designation and manufacture
D00: software version installed in radio
0004: software version installed in radio
Coding 00117: radio coding
Coding 00637: radio coding
WSC XXXXX: dealership number

NOTE: Check/confirm coding using coding table. See CODING TABLE - THROUGH M.Y. 2001 .

Press --> button.

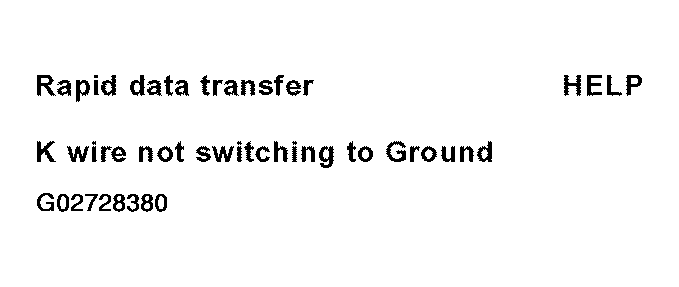

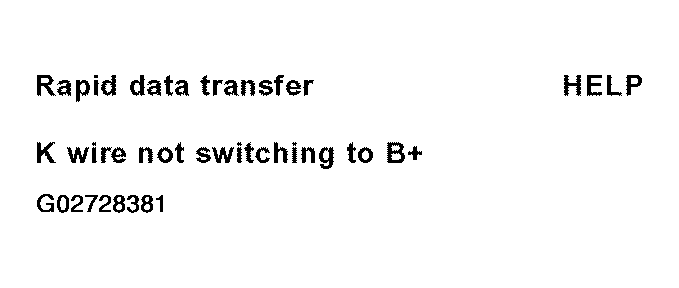

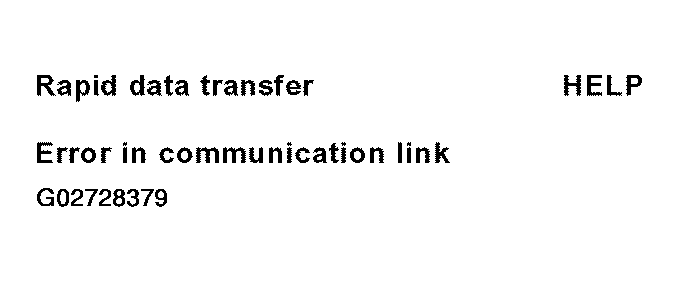

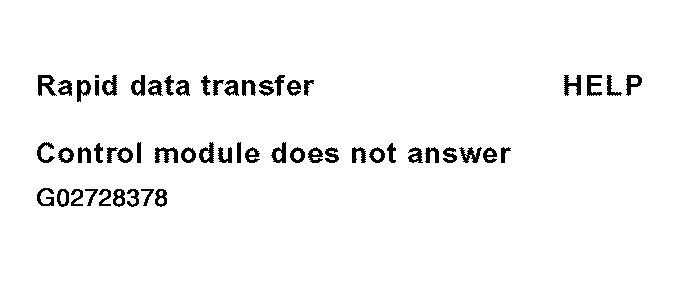

If display shows one of the following messages, carry out troubleshooting procedure as described in troubleshooting program for diagnostic wiring.

Fig 1: Identifying Scan Tool Display - Radio, On Board Diagnostic (5 Of 9)
Courtesy of AUDI OF AMERICA, INC.

Fig 2: Identifying Scan Tool Display - Radio, On Board Diagnostic (6 Of 9)
Courtesy of AUDI OF AMERICA, INC.

Fig 3: Identifying Scan Tool Display - Radio, On Board Diagnostic (7 Of 9)
Courtesy of AUDI OF AMERICA, INC.

Fig 4: Identifying Scan Tool Display - Radio, On Board Diagnostic (8 Of 9)
Courtesy of AUDI OF AMERICA, INC.

Indicated on display

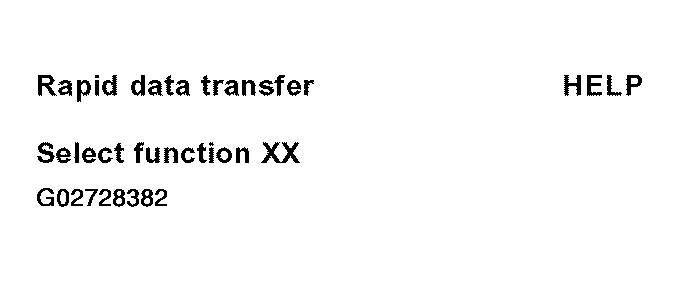

Fig 5: Identifying Scan Tool Display - Radio, On Board Diagnostic (9 Of 9)

G02728382

Courtesy of AUDI OF AMERICA, INC.

After the HELP button is pressed, a list of the possible functions is printed out.

Press --> button to advance through program sequence.
