"Symphony" radio, removing and installing: Removing

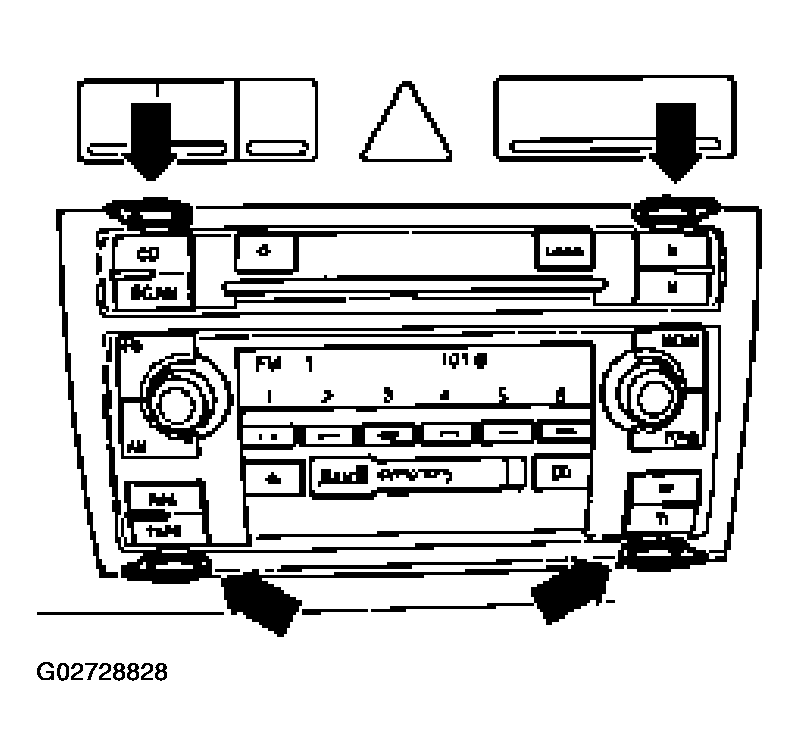

• Insert T10057 radio removal tools into release slots (arrows) as shown until they engage.
  • Top L - top and bottom left
  • Top R - top and bottom right
• Pull radio out of instrument panel using grip rings on release tool.
Fig 1: Locating Grip Rings On Release Tool - Symphony Radio
Courtesy of AUDI OF AMERICA, INC.
• Unlock and disconnect electrical connectors

Remove radio release tools:

• Press locking latch arrow- and remove radio release tools toward front.

Fig 2: Removing Symphony Radio

Courtesy of AUDI OF AMERICA, INC.
