Adaptation channel 45 - Adaptation to oil quality
NOTE:
- The used oil must be adapted anew after every service.
- For USA vehicles the current adaptation value is "1".
- The currently valid specifications can be found in the "Maintenance" book.
See MAINTENANCE .

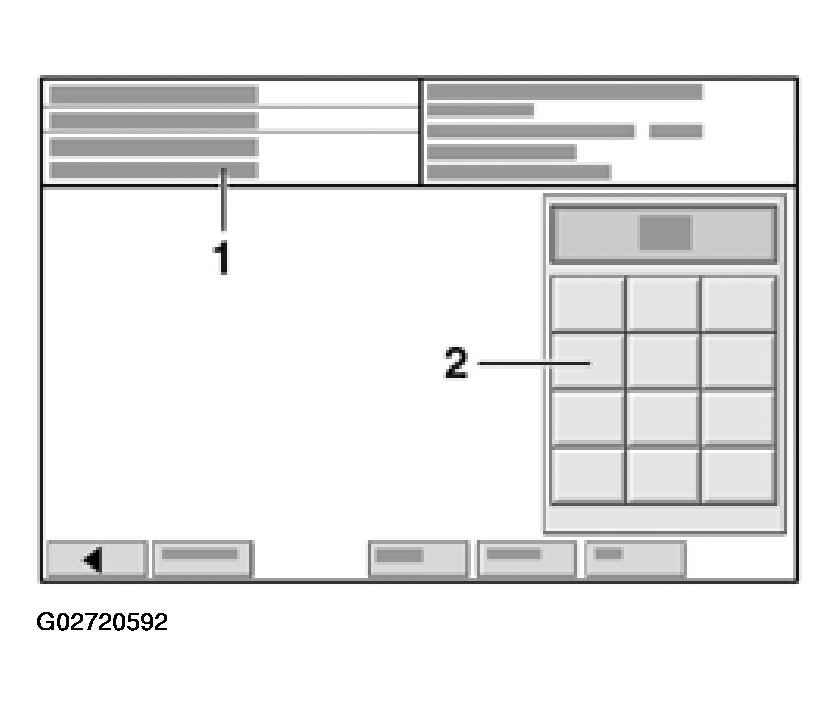

Display on VAS 5051:
- Select function "45" in button field -2- for "Adaptation channel 45" and press Q button to confirm input.

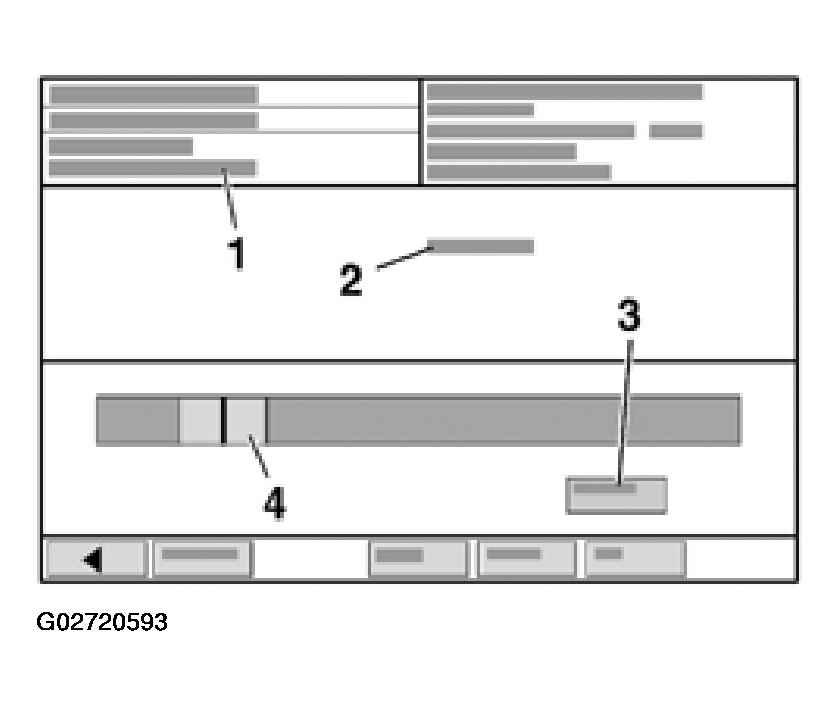

Display on VAS 5051:
- Channel 45
- read and test
- Oil-quality
- Keypad - only direct input via the keypad is possible
- The sliding bar is positioned on the current adaptation value
- Change adaptation value via direct input. See B - Change adaptation value via direct input: .
- Enter 5-digit adaptation value. Insert zeros in front.
Example:
Specification: 1
Keypad input: 00001

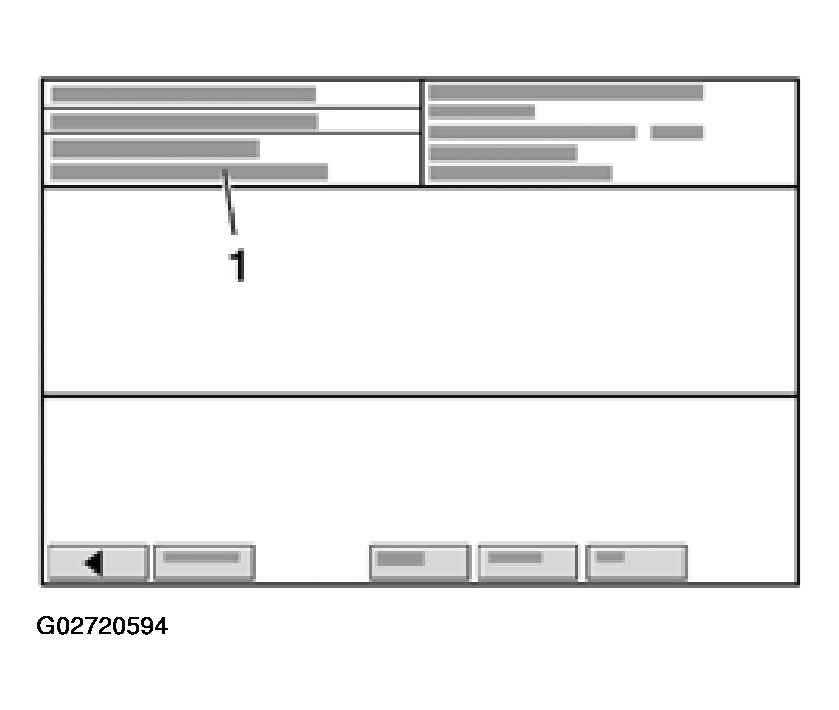

Display on VAS 5051 after performed adaptation:
- 1 - Channel 45
- Value 1 stored
- End function "10 - Adaptation" by pressing <= button.
