Glove box, removing and installing

The following list pertains to Fig 1 .

1. Glove box

   Removing

   • Open glove box lid. Remove screws -3- (3x).
   • Remove screws -4- (2x).
   • Remove glove box downward.
   • Disconnect connector -2-.

   Installing

   • Position strip -5- with rubber studs -6- against instrument panel -7- from underneath and install glove box.
2. Connector
3. Screws (3x)
   • Tightening torque: 5 Nm (44 in. lb)
4. Screws (2x)
   • Tightening torque: 5 Nm (44 in. lb)
5. Strip
6. Rubber stops
7. Instrument panel

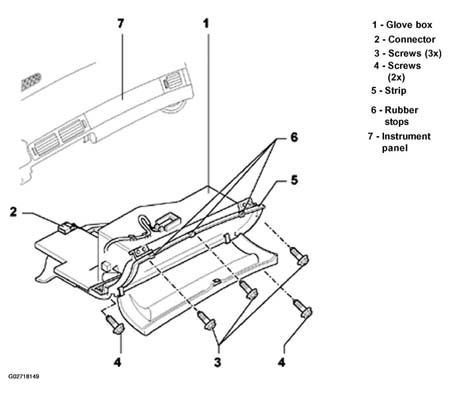

Fig 1: Identifying Glove Compartment Components
Courtesy of AUDI OF AMERICA, INC.
