Front ashtray (vehicles with "Symphony" radios and "radio-navigation plus"), removing

Remove radio for "Symphony" radio system.
See "SYMPHONY" RADIO, REMOVING AND INSTALLING .
Remove operating electronics and telephone control module -J412- for "plus" radio navigation system.
See RADIO, TELEPHONE, NAVIGATION, TRIP COMPUTER
Remove A/C controls and heat controls.
See A/C CONTROL HEAD -E87-, REMOVING AND INSTALLING .
Press retaining tabs -2- and pull ashtray out forward.
Disconnect harness connectors.

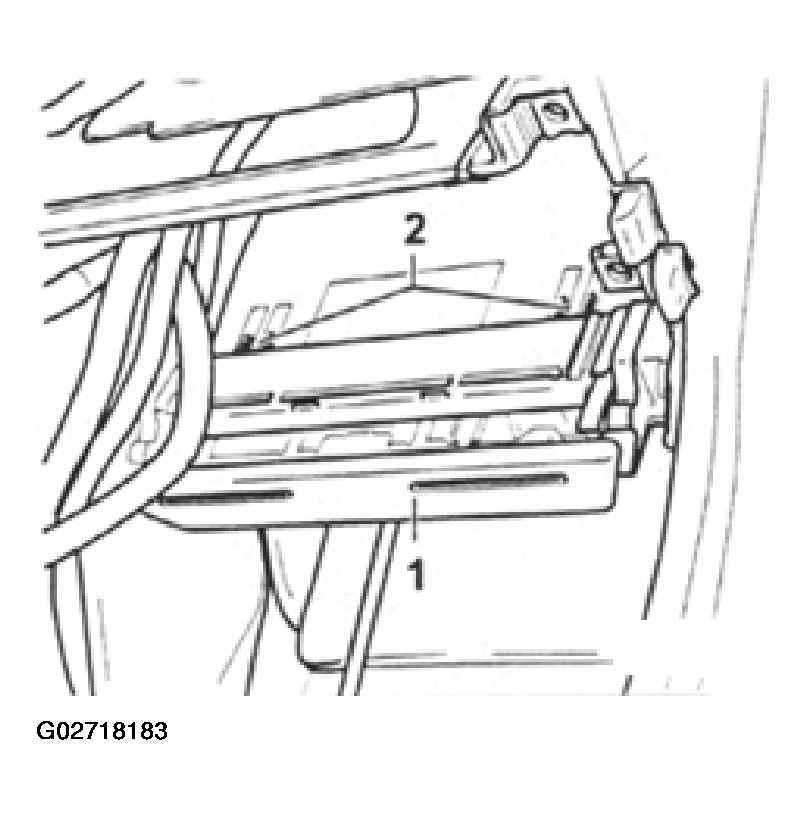

Fig 1: RemovingFront Ashtray (Vehicles With "Symphony" Radios And "Radio-Navigation Plus")

Courtesy of AUDI OF AMERICA, INC.
