Center section of instrument panel (vehicles with "Chorus" and "Concert" radios), removing

Remove front section of center console. See CENTER CONSOLE (FRONT SECTION), REMOVING AND INSTALLING .
Remove bolts -2- (6x). See Fig 1 .
Tightening torque: 4 Nm (35 in. lb)
Pull center section of instrument panel -1- forward.

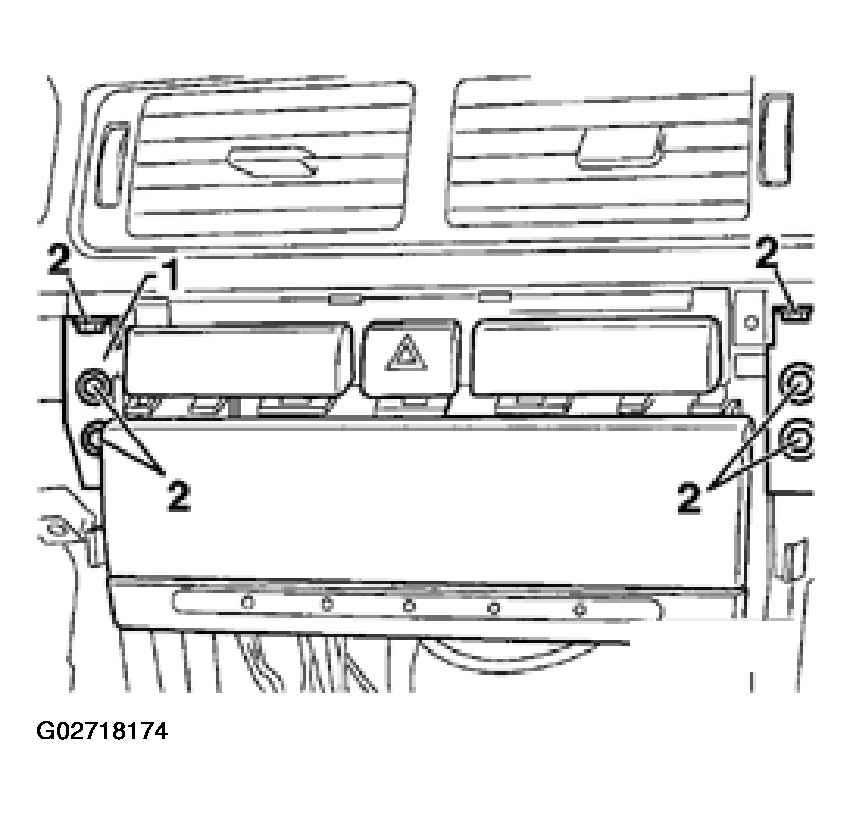

Fig 1: Identifying Center Section Of Instrument Panel (Vehicles With "Chorus" And "Concert" Radios)
Courtesy of AUDI OF AMERICA, INC.
Disconnect connectors for hazard warning light switch, storage compartment and cup holder.
Cut off cable tie on wiring harness for hazard warning light switch.
