Double clamps front, installation position

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

The bolt ends must not protrude beyond lower end of clamp.

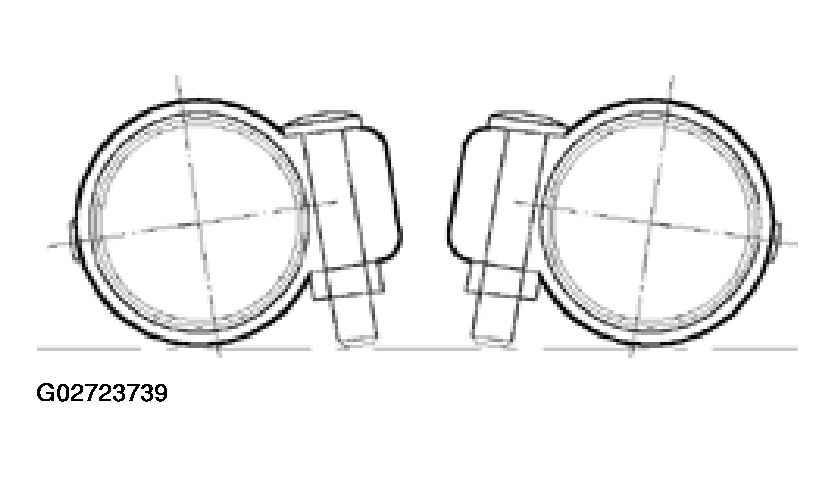

Fig 1: Installing Double Clamps Front
G02723739Courtesy of AUDI OF AMERICA, INC.
