Removing left-hand turbocharger: Notes

Push back heat insulation hose in direction of arrow. See Fig 1.
Disconnect vacuum hose -1-.
Remove lower section of pressure line -2-.
Disconnect pressure hose -3- from turbocharger.

Fig 1: Disconnecting Pressure Hose -3- From Turbocharger
Courtesy of AUDI OF AMERICA, INC.
Disconnect vacuum line -1-. See Fig 2.
Disconnect vacuum hose -2-.
Disconnect line -3- going to right-hand turbocharger.

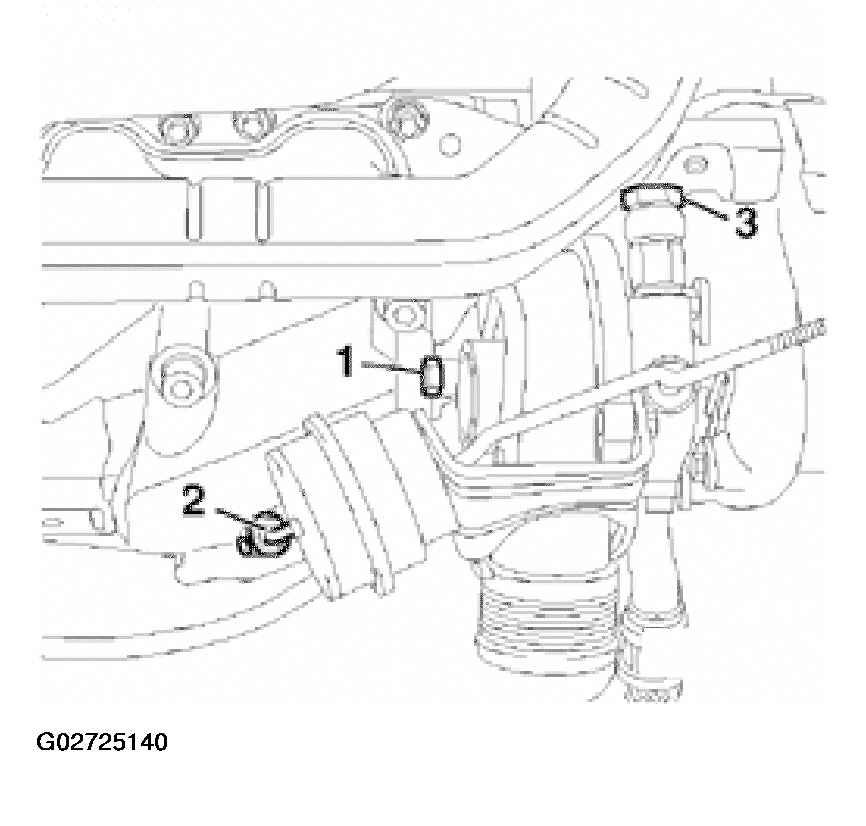

Fig 2: Disconnecting Vacuum Line And Line Going To Right-Hand Turbocharger
Courtesy of AUDI OF AMERICA, INC.
Disconnect oil return line -1-.
Disconnect water line -2-.
Remove turbocharger -3- (3 bolts).

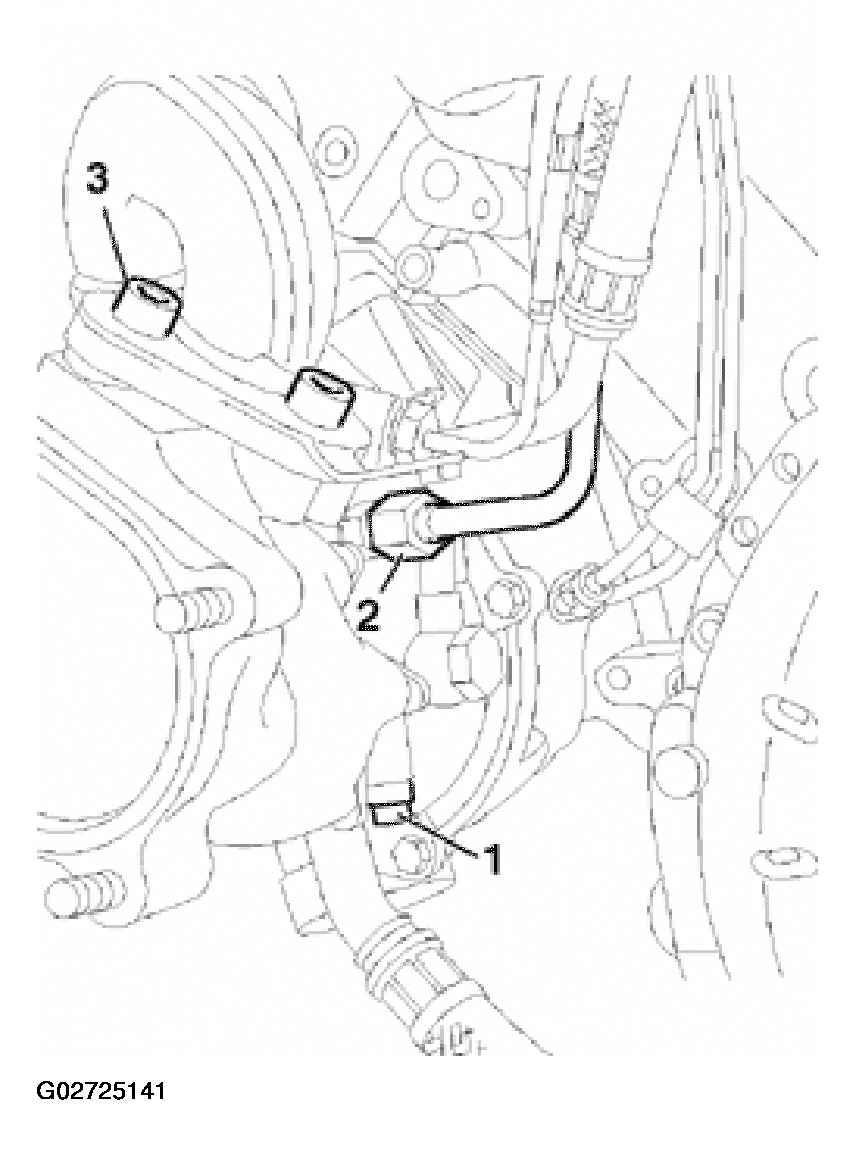

Fig 3: Disconnecting Turbocharger Oil Return Line And Water Line

Courtesy of AUDI OF AMERICA, INC.
