Removing left-hand turbocharger: Installing
- Installation is the reverse of removal.NOTE: When installing turbocharger, be sure that o-ring at connection flange for oil return is not damaged.

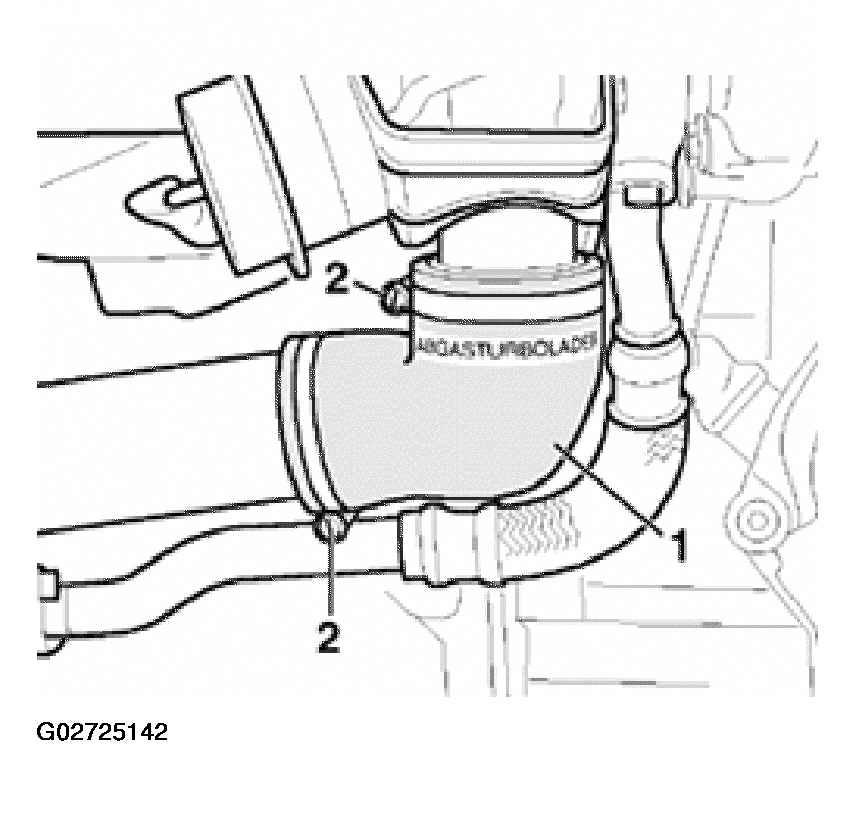

- Check that text "Abgasturbocharger" is readable as shown in illustration, install turbocharger hose -1- properly if necessary.
The hose clamps -2- must be installed as shown in illustration. The bolt-locks on the screw clamps must be placed at the X-marking on the hose.
