Secondary Air Injection (AIR) system components, removing and installing: Notes
The components for the Secondary Air Injection (AIR) system are located under the air distributor between the intake manifold and the plenum chamber.
NOTE:

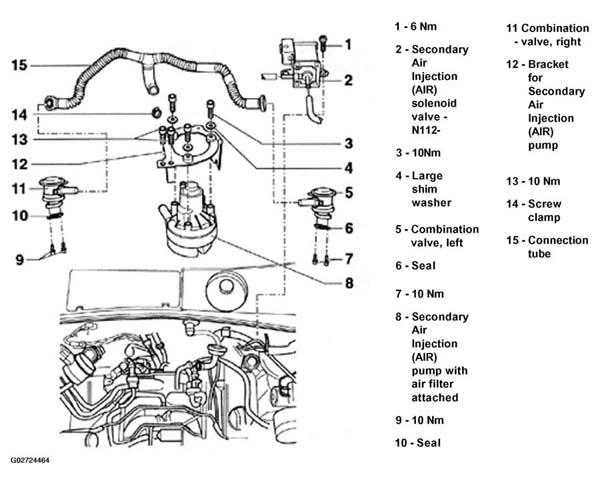

The following list refers to items in Fig 1.
- 6 Nm
- Secondary Air Injection (AIR) solenoid valve -N112-
- 10Nm
- Large shim washer
- For all 3 rubber bonded bushings at bracket for Secondary Air Injection (AIR) pump
- Combination valve, left
- Seal
- 10 Nm
- Secondary Air Injection (AIR) pump with air filter attached
- 10 Nm
- Seal
- Combination valve, right
- Bracket for Secondary Air Injection (AIR) pump
- Bolted to rear intake manifold.
- 10 Nm
- Screw clamp
- Connection tube
- Between Secondary Air Injection (AIR) pump and combination valves
