Installation position of Secondary Air Injection (AIR) pump motor -V101-
Installation position of Secondary Air Injection (AIR) pump motor -V101-
At intake manifold, rear left -4-.

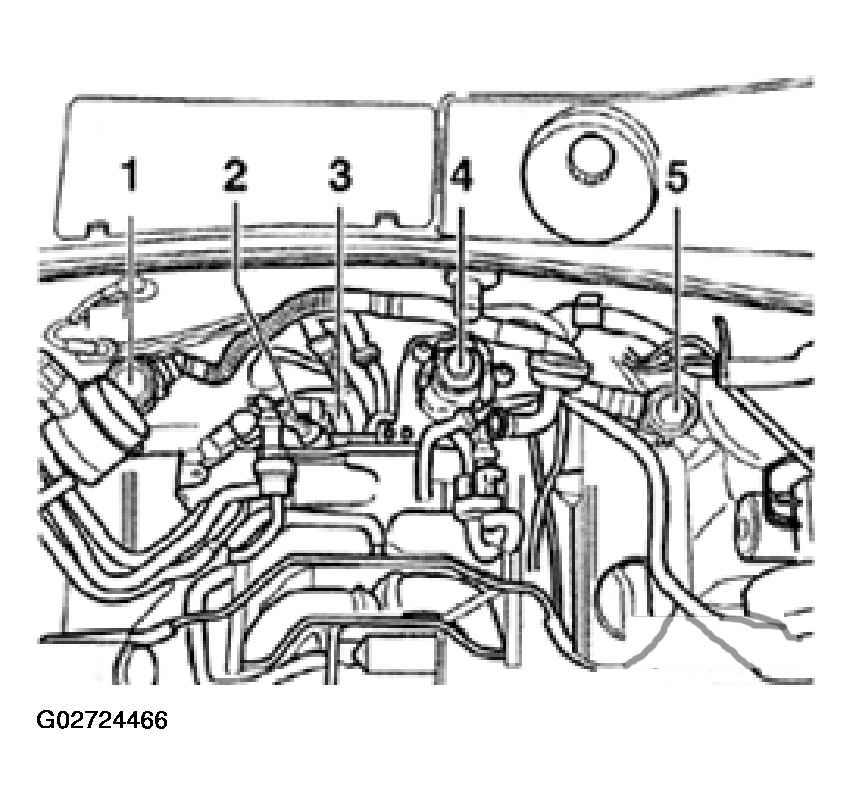

Fig 1: Identifying Installation Position Of Secondary Air Injection Pump Motor -V101-
Courtesy of AUDI OF AMERICA, INC.
