Mufflers with mountings: Notes
NOTE:

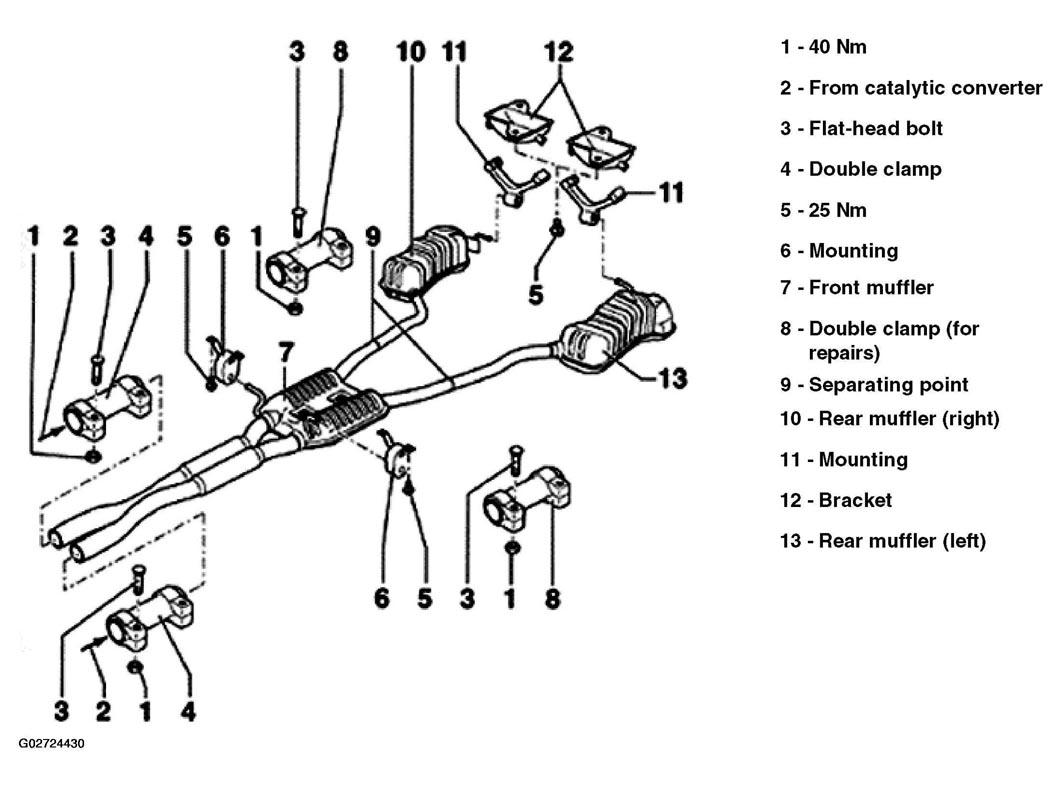

The following list refers to items in Fig 1.
- 40 Nm
- From catalytic converter
- Flat-head bolt
- Double clamp
- 25 Nm
- Mounting
- With retaining ring
- Front muffler
- Double clamp (for repairs)
- Separating point
- The front and rear mufflers are installed as one component when the vehicle is built. For repairs, the front muffler and rear muffler can be replaced separately and connected with a double clamp.
- Cutting through connecting pipe. See SEPARATING POINT IN CONNECTING PIPE FOR SEPARATE REPLACEMENT OF FRONT AND REAR MUFFLERS .
- Rear muffler (right)
- Mounting
- Bracket
- Rear muffler (left)
