Installation position of double clamp at rear

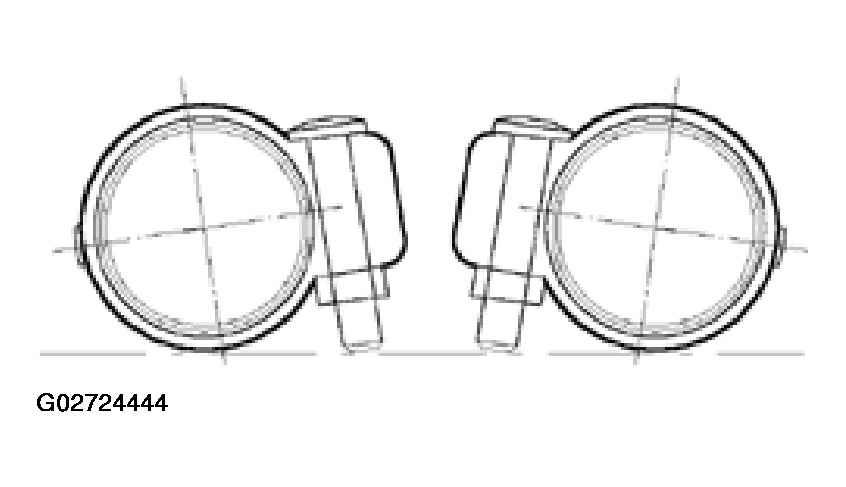

Fig 1: Identifying Installation Position Of Double Clamp At Front
G02724444Courtesy of AUDI OF AMERICA, INC.

The ends of the bolts must not project below the bottom of the clamp.

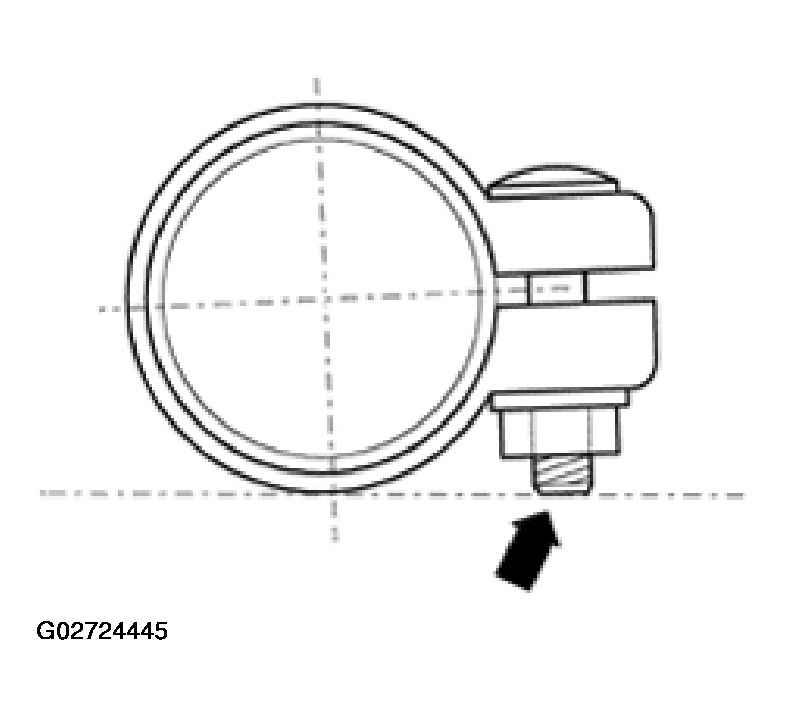

Fig 2: Identifying Installation Position Of Double Clamp At Rear
G02724445Courtesy of AUDI OF AMERICA, INC.
