Diagnostic Trouble Code (DTC) table

NOTE:

Next, all possible malfunctions that can be recognized by automatic vertical headlight aim control and indicated on VAS 5051 scan tool are listed according to their 5-digit numbers.
DTC memory stores all static and sporadic malfunctions: A malfunction is recognized as being static if it occurs for at least 2 seconds. If the malfunction is no longer recognized after that it is stored as sporadic malfunction. In addition, "sporadic" is indicated on display.
When the ignition is switched on, all existing malfunctions are automatically re-classified as sporadic malfunctions and will only register as static malfunctions if they still occur after testing.
Sporadic malfunctions which no longer occur during 50 driving cycles (ignition on at least 5 minutes, vehicle speed greater than 30 km/h) are erased automatically.
Do not immediately replace components that the VAS 5051 suggests are malfunctioning, instead: Check wire connections and harness connectors to these components according to wiring diagram. Also check Ground (GND) connections according to wiring diagram. This is particularly valid when malfunctions are displayed as "sporadic".
After repair and function test of the system, DTC memory must be checked again and erased.

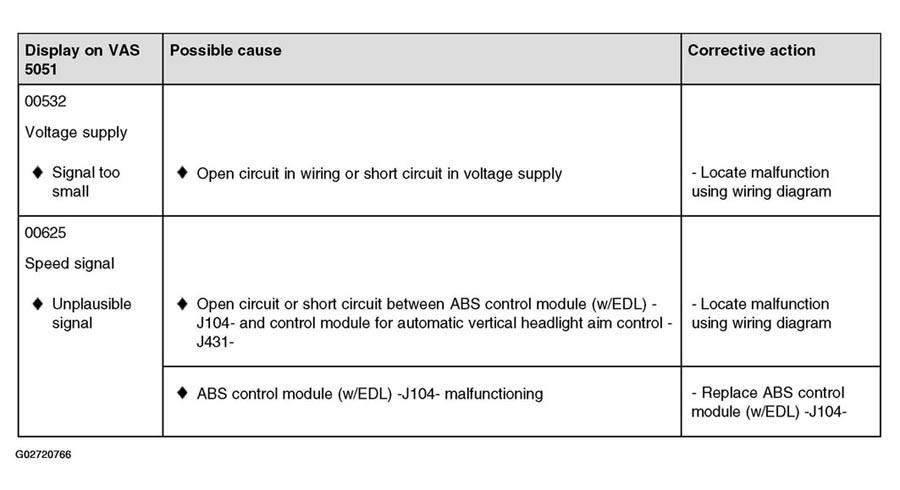

Fig 1: Automatic Headlight Aim Control - DTC 00532 & 00625 Diagnostic Chart
