Terminal assignment at steering column switch: Overview

  1. Windshield wiper switch connection
  2. Connection for driver information system and interval
  3. Connection for cruise control system
  4. Connection for signal switch

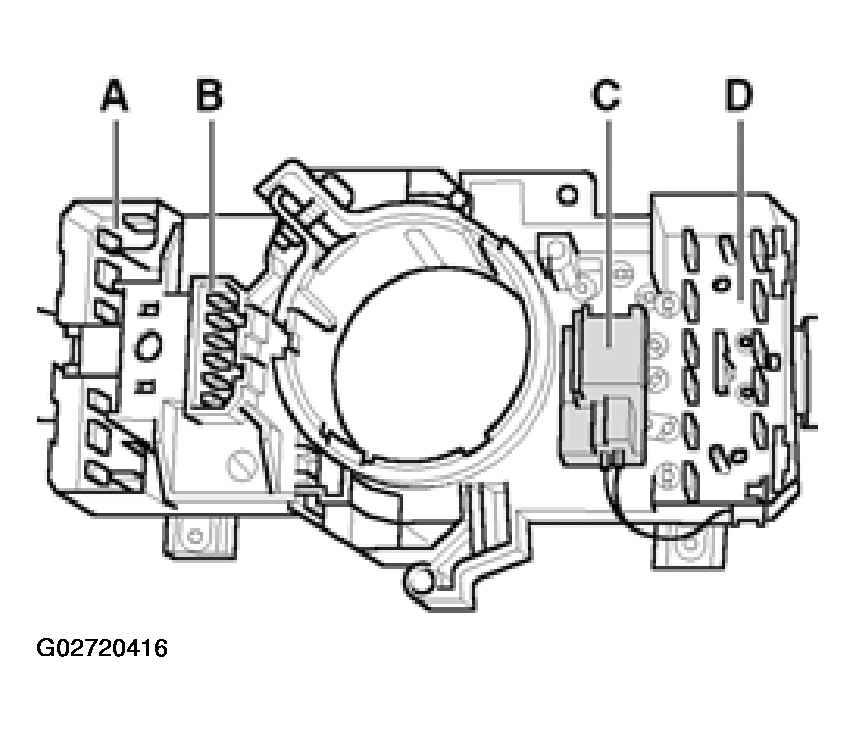

    5. Fig 1: Identifying Terminal Assignments At Steering Column Switchs
    G02720416Courtesy of AUDI OF AMERICA, INC.
