Fog lights, adjusting

Current fog light specifications and procedures:

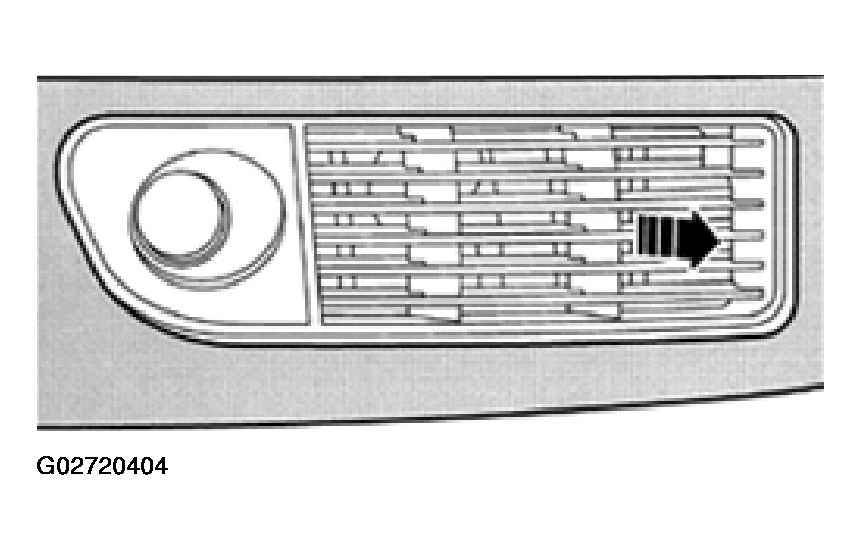

Fig 1: Pulling Off Air Inlet Grid In Lower Region Of Bumper

Courtesy of AUDI OF AMERICA, INC.

Turn adjustment screw toward left (arrow) to lower beam height. Horizontal adjustment is not possible.

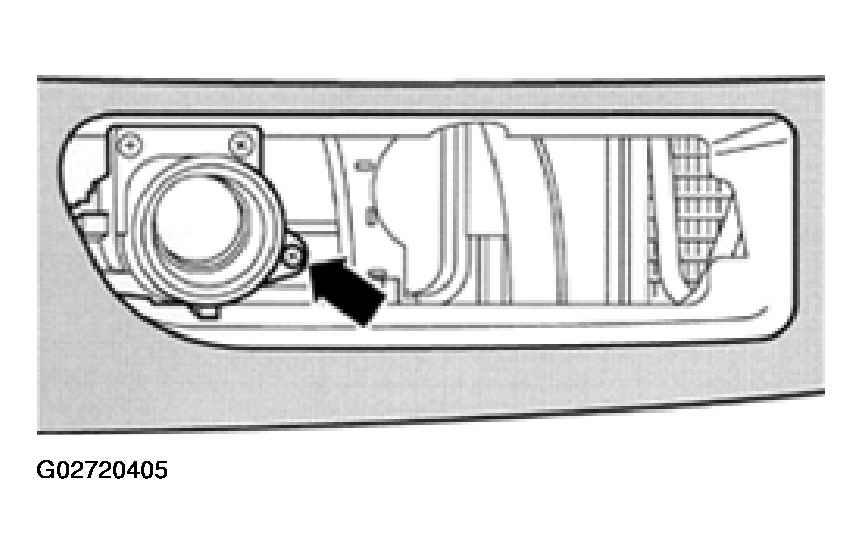

Fig 2: Locating Fog Light Adjustment Screw

Courtesy of AUDI OF AMERICA, INC.

NOTE: Right fog light is displayed in illustration. The adjustment screw is allocated as a mirror image for left fog light.
