Digital cellular telephone (preparation) from m.y. 2002, layout
NOTE:
The digital cellular telephone is optional equipment, and is only used in conjunction with telematics system. ("Audi Telematics by OnStar®. See TELEMATICS .)
NOTE:

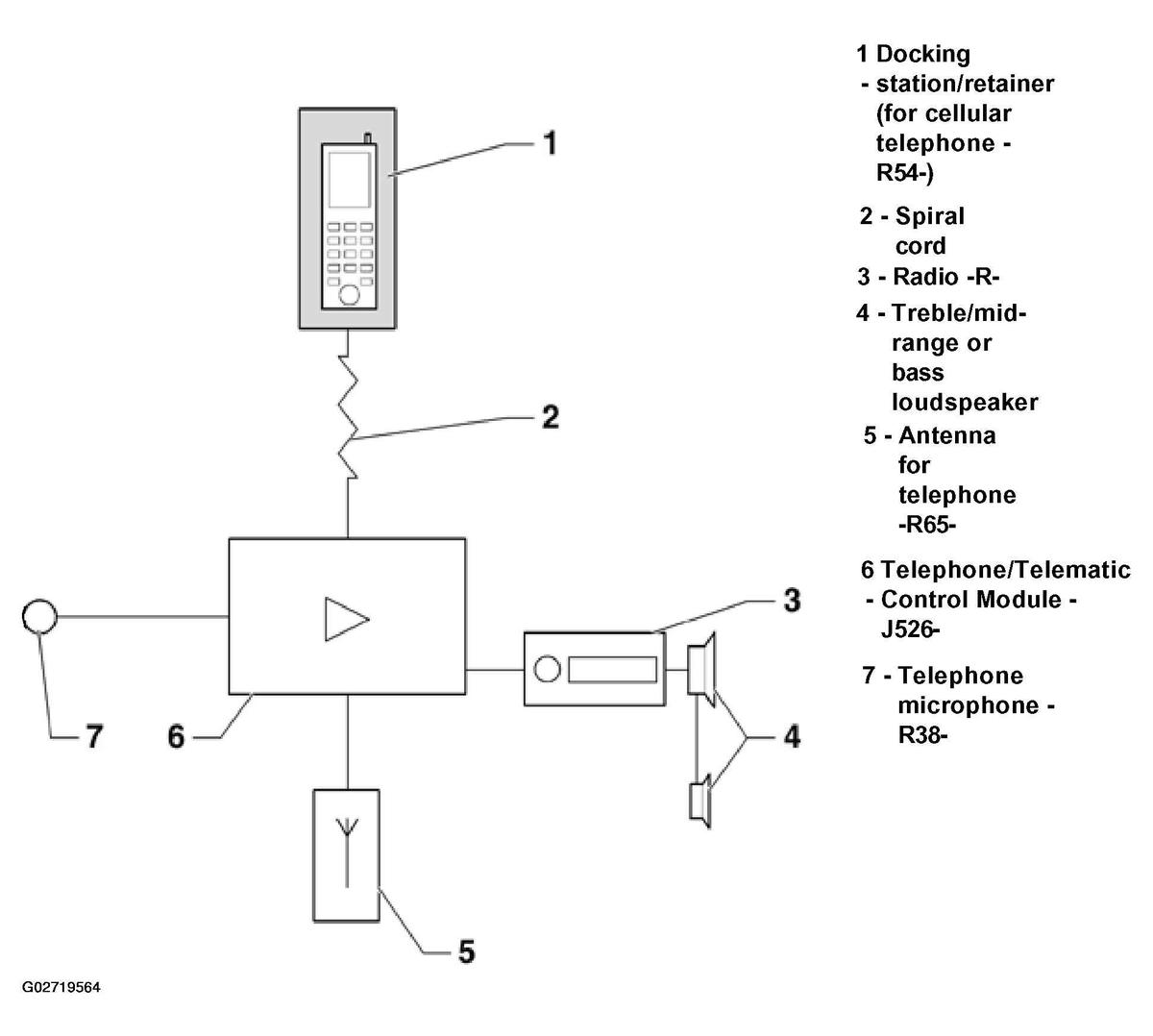

The following list refers to Fig 1.
- Docking station/retainer (for cellular telephone -R54-)
- Removing and installing. See DOCKING STATION/RETAINER (FOR CELLULAR TELEPHONE -R54-), REMOVING AND INSTALLING .
- Spiral cord
- Radio -R-
- In instrument panel, center
- Removing and installing. See "CONCERT" RADIO, REMOVING AND INSTALLING .
- Treble/mid-range or bass loudspeaker
- In front door panel trim
- Removing and installing. See FRONT BASS SPEAKERS -R21- & -R23-, REAR BASS SPEAKERS -R15- & -R17-, REMOVING AND INSTALLING .
- Antenna for telephone -R65-
- In rear bumper
- Removing and installing. See ANTENNA FOR TELEPHONE -R65-, REMOVING AND INSTALLING .
- Telephone/Telematic Control Module -J526-
- In front passenger's footwell
- Removing and installing. See TELEPHONE/TELEMATIC CONTROL MODULE -J526-, REMOVING AND INSTALLING .
- Telephone microphone -R38-
- Integral with front interior light module.
- Removing and installing. See TELEPHONE MICROPHONE -R38- FROM M.Y. 2000, REMOVING AND INSTALLING .
