Read Measuring Value Block (function 08): Notes
- Initiate output Diagnostic Test Mode of instrument cluster. See INSTRUMENT CLUSTER ON BOARD DIAGNOSTIC (OBD), INITIATING .
Display on VAS 5051:

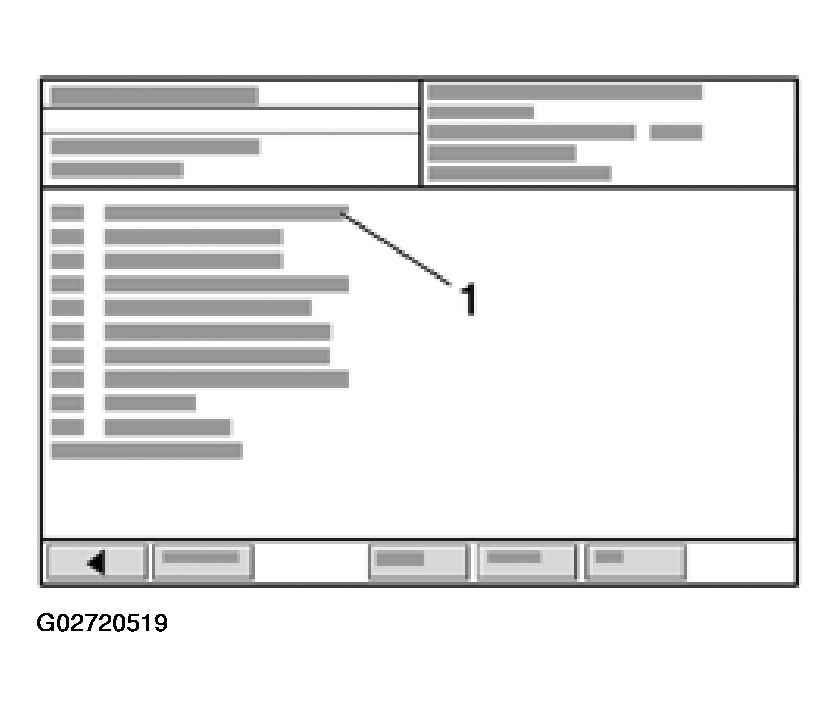

- Select diagnostic function "08 - read measured value block" in selection -1-.
Display on VAS 5051:

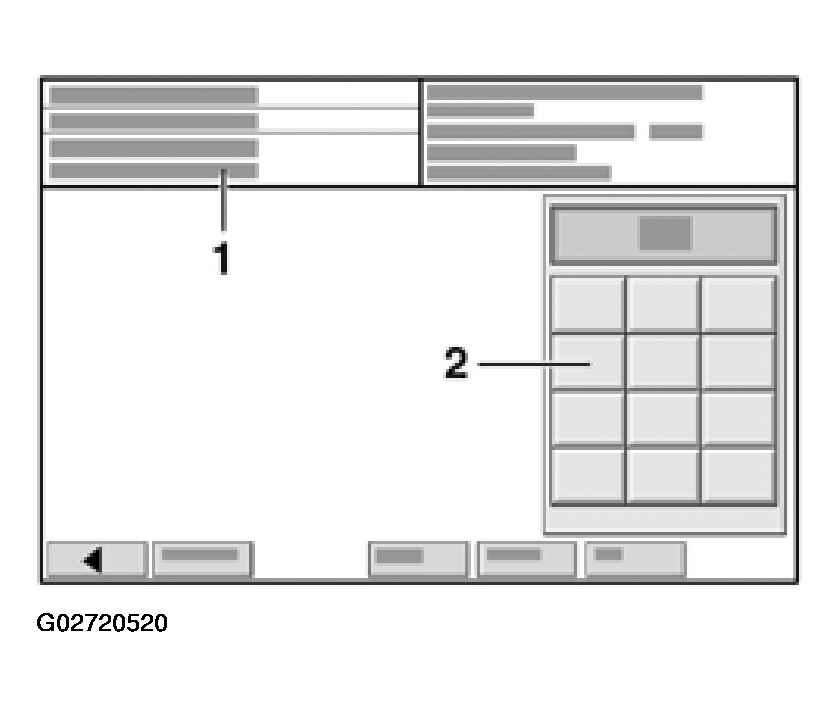

- Enter display group Max. input value = 255
- Enter desired display group number in button field -2-. See Display group overview .
- Press -Q- button to confirm input.

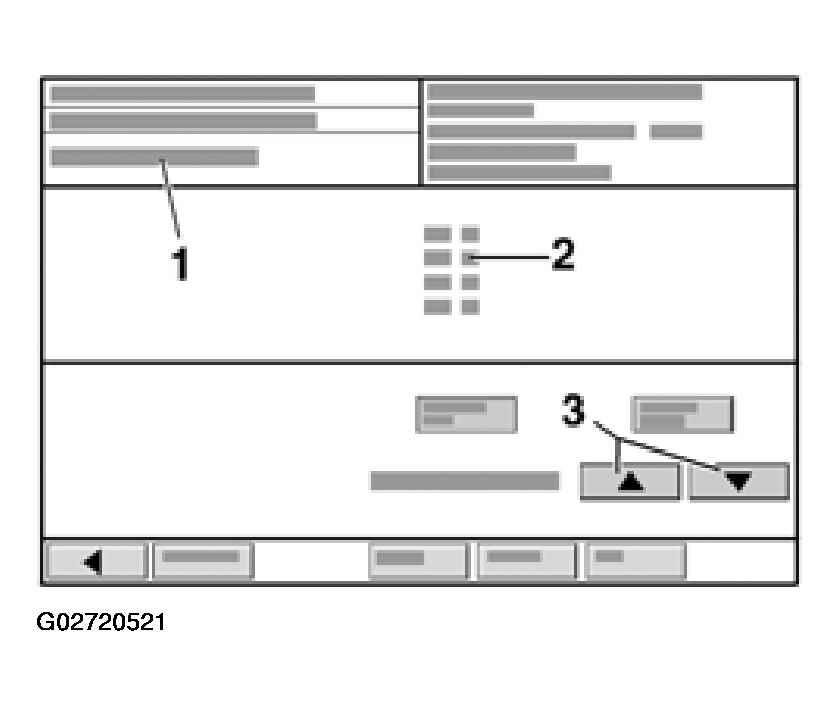

Display on VAS 5051:
- Display group X
-
- Display field 1
- Display field 2
- Display field 3
- Display field 4
NOTE:
- If no display follows, a display field is not assigned.
- To switch to a different display group, proceed as follows:
CHANGING DISPLAY GROUP
| Display group | VAS 5051 tester |
|---|---|
| Higher | Press up button. |
| Lower | Press down button. |
- Press "08 - Erase DTC Memory" to end function <-- button.
