Display group overview

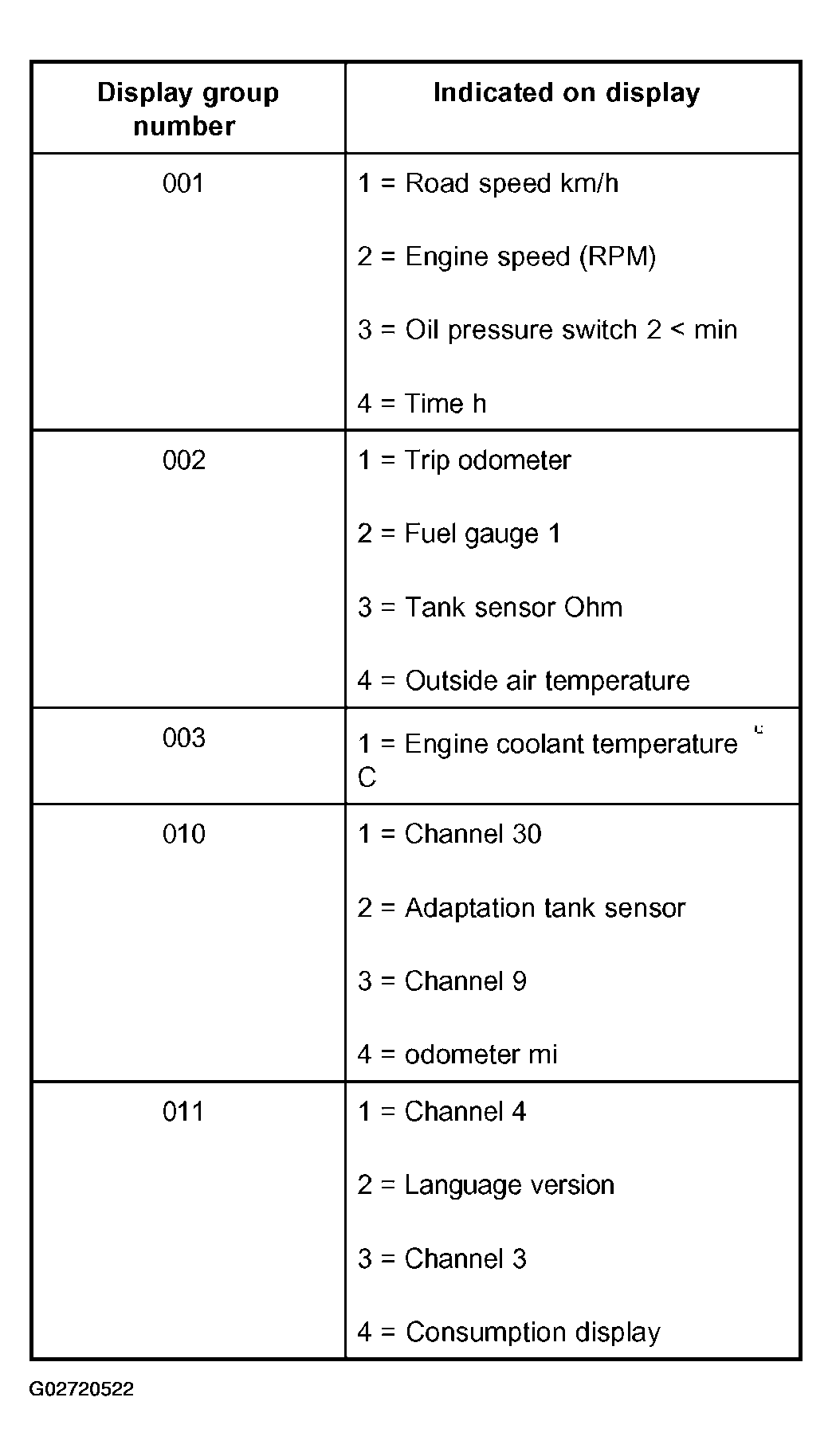

Fig 1: Rear Measuring Value Display Group Overview - Instrument Cluster (001 To 011)

Courtesy of AUDI OF AMERICA, INC.

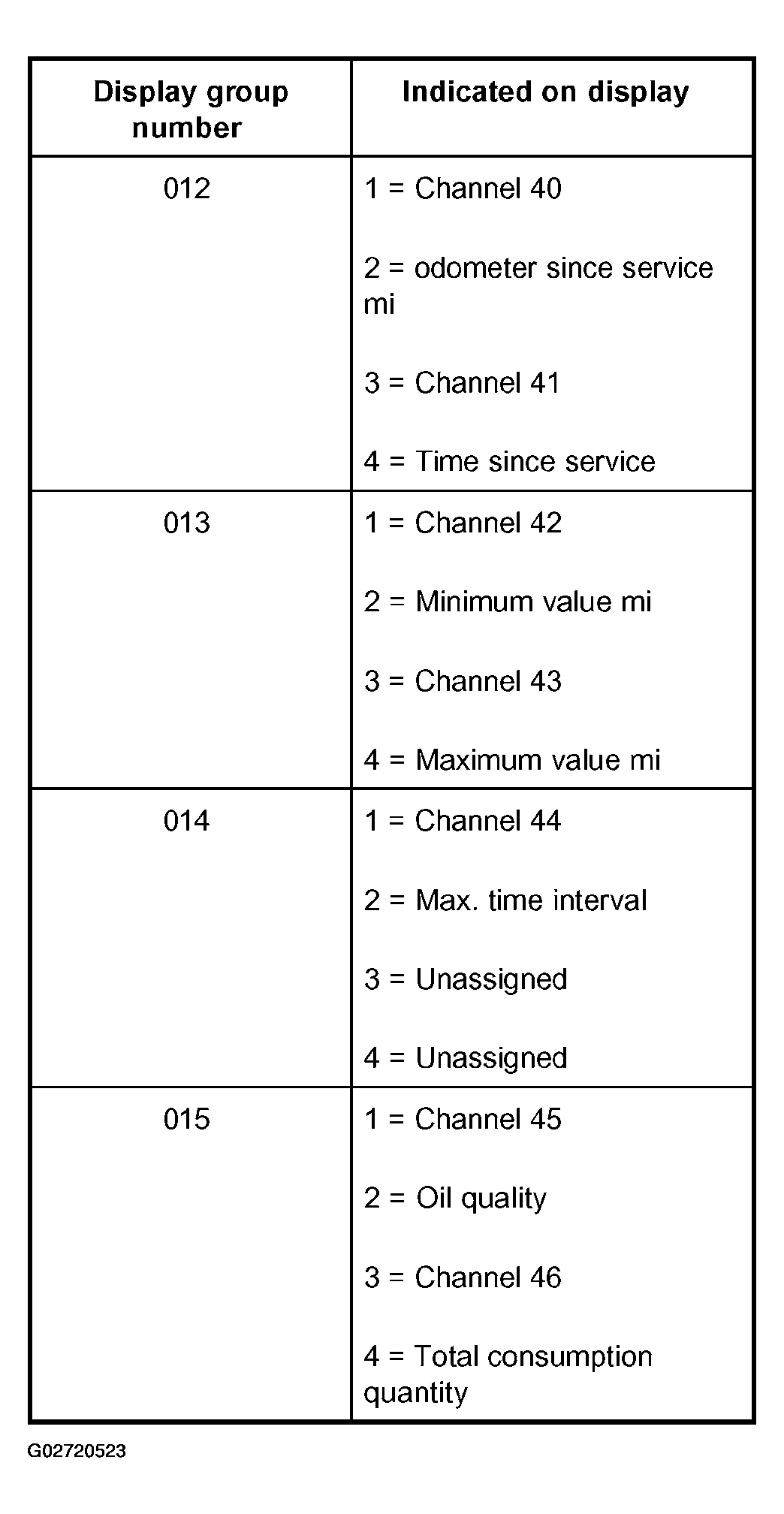

Fig 2: Rear Measuring Value Display Group Overview - Instrument Cluster (012 To 015)

Courtesy of AUDI OF AMERICA, INC.

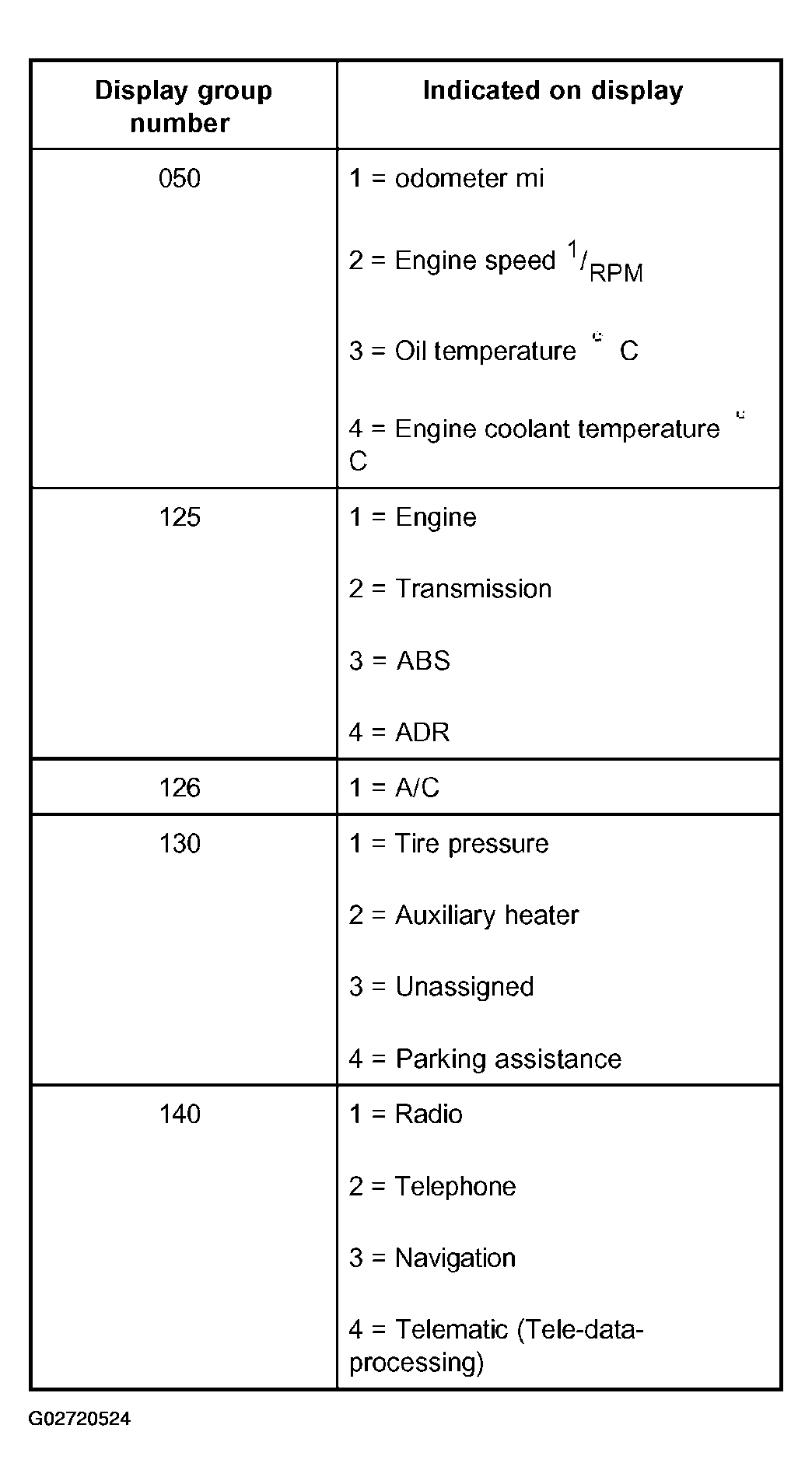

Fig 3: Rear Measuring Value Display Group Overview - Instrument Cluster (050 To 140)

Courtesy of AUDI OF AMERICA, INC.

NOTE:

If the instrument cluster is replaced, the data from display groups 010 to 015 must be printed out.
Measuring value blocks 125 and 126 indicate the components that are part of the powertrain CAN-bus.
Measuring value block 130 indicates the participants in the comfort system CAN-bus.
Measuring value block 140 indicates the participants in the information CAN-bus.
Display will always indicate the actual values obtained from senders and sensors. The values which appear on the instrument cluster are filtered and may be different.
If the actual coolant temperature is between 80 °C and 100 °C, the instrument cluster always displays 90 °C.
