Example 3:

Using the DTCs stored in the memories, you have determined that none of the control modules are sending or receiving signals.

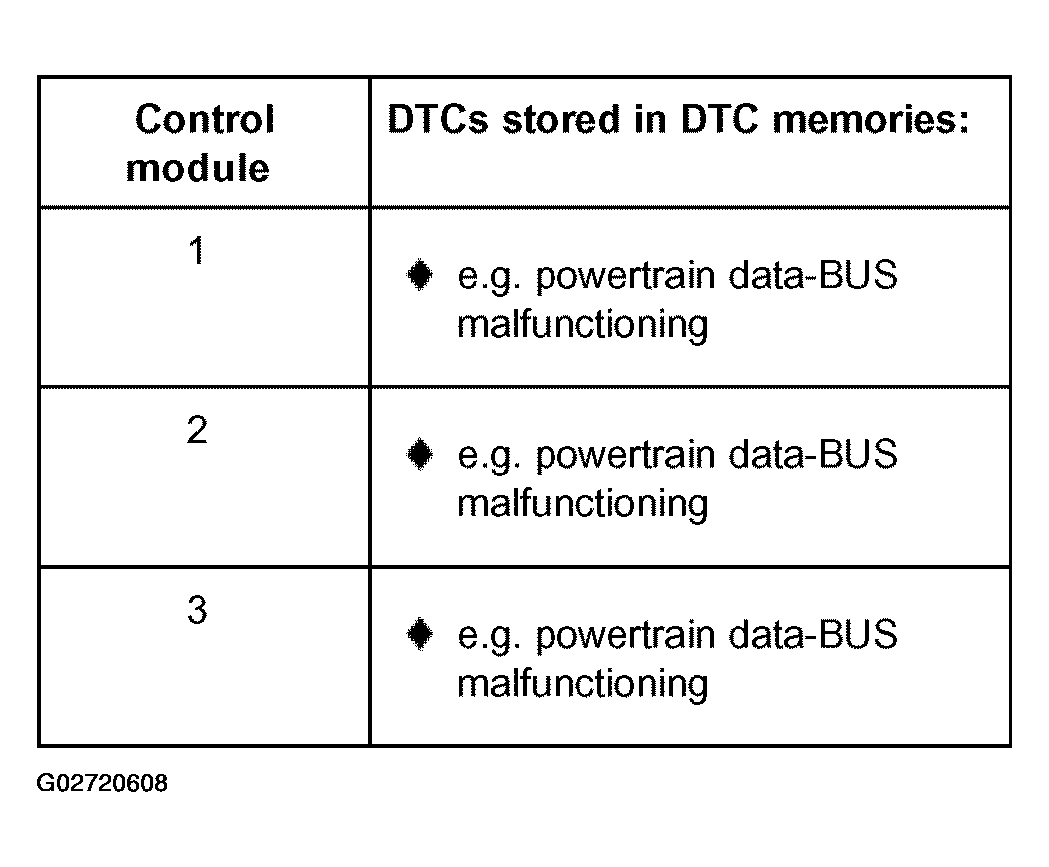

Fig 1: DTC Memory - None Of The Control Modules Are Sending Or Receiving Signals

Courtesy of AUDI OF AMERICA, INC.

• Switch ignition off.
• Disconnect the control modules connected across the bus wires and check for short circuits between the bus wires.

  See appropriate System Wiring Diagram article.

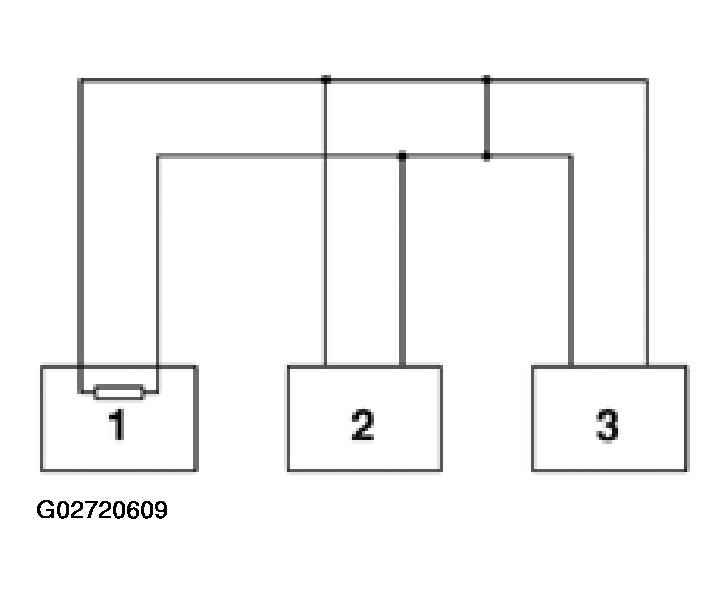

Fig 2: Schematic - Checking For Short Circuits Between Bus Wires
Courtesy of AUDI OF AMERICA, INC.
• Check the bus wires for short circuit to B+ or Ground (GND).

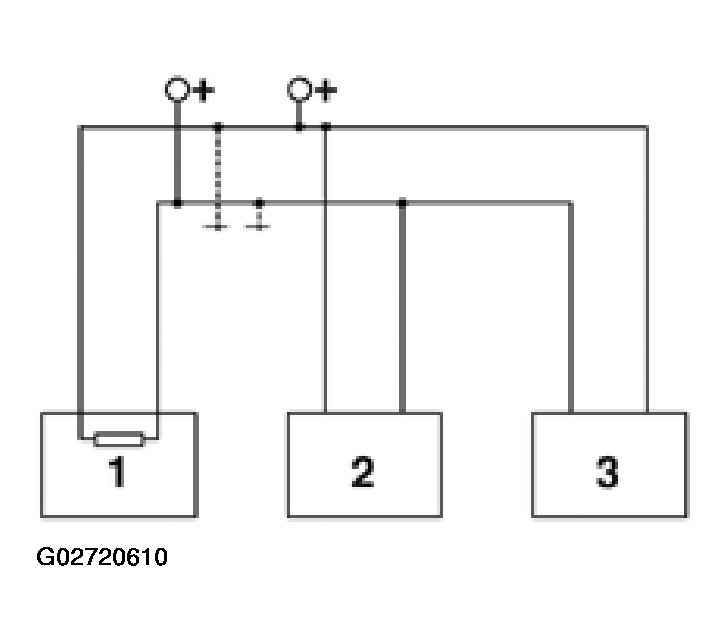

Fig 3: Schematic - Checking Bus Wires For Short Circuit To B+ Or Ground
Courtesy of AUDI OF AMERICA, INC.
