Example 1:

From the DTCs stored in the memories, you have determined that control module 1 is not communicating with control modules 2 and 3.

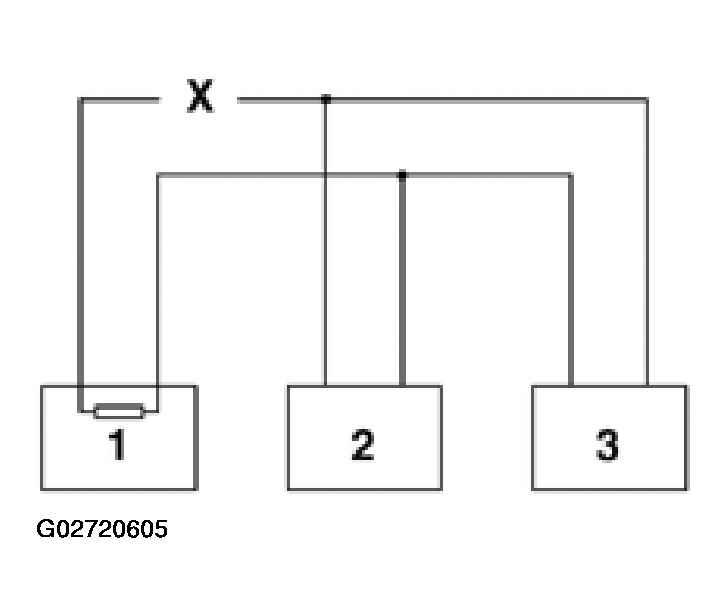

Fig 1: Schematic - Control Module 1 Not Communicating With Control Modules 2 & 3

Courtesy of AUDI OF AMERICA, INC.

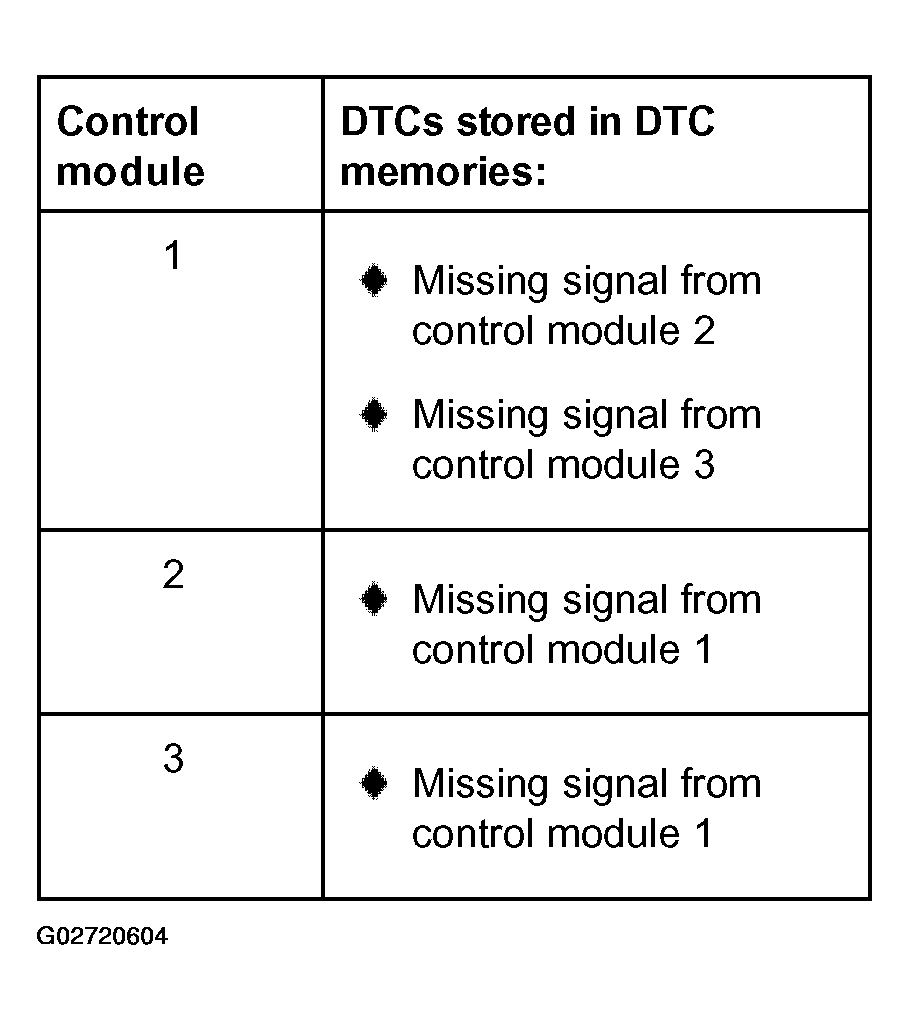

Fig 2: DTC Memory - Control Module 1 Not Communicating With Control Modules 2 & 3

Courtesy of AUDI OF AMERICA, INC.

• Switch ignition off.
• Disconnect the control modules connected across the bus wires and check the bus wires for an open circuit.

  See appropriate System Wiring Diagram article.

• Replace control module 1 if no malfunctions can be found in the bus wires.
