If malfunctions were recognized:

• Print out Screen content or On Board Diagnostic (OBD) protocol:

  See operating instructions for the VAS 5051 tester.

• Click on <-- button

Display on VAS 5051:

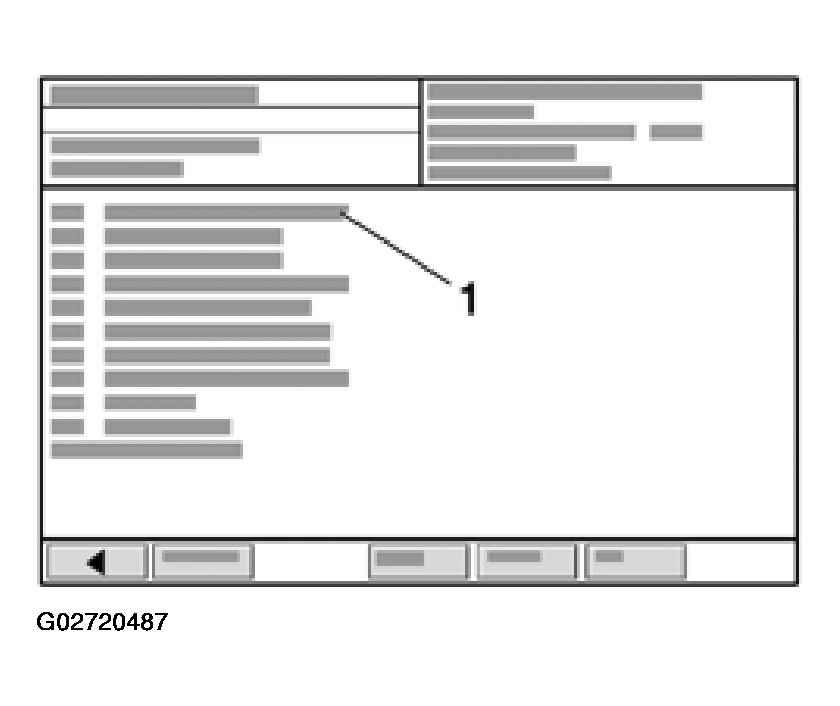

Fig 1: VAS 5051 Tester Display - Malfunctions Recognized

Courtesy of AUDI OF AMERICA, INC.

• Repair malfunction(s) according to DTC table. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE  .
• In selection, click on diagnostic function "02 - Check DTC Memory" again and Erase DTC Memory. See ERASE DTC MEMORY (FUNCTION 05)  .
• In selection, click on diagnostic function "06 - End Output". See END OUTPUT (FUNCTION 06)  .
