Initiating "Adaptation" function 10: Notes

Initiate output Diagnostic Test Mode of instrument cluster. See INSTRUMENT CLUSTER ON BOARD DIAGNOSTIC (OBD), INITIATING .

Display on VAS 5051:

Fig 1: VAS 5051 Tester Display - Adaptation (Instrument Cluster) (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

In selection -1-, select the diagnostic function "10 - Adaptation".

Display on VAS 5051:

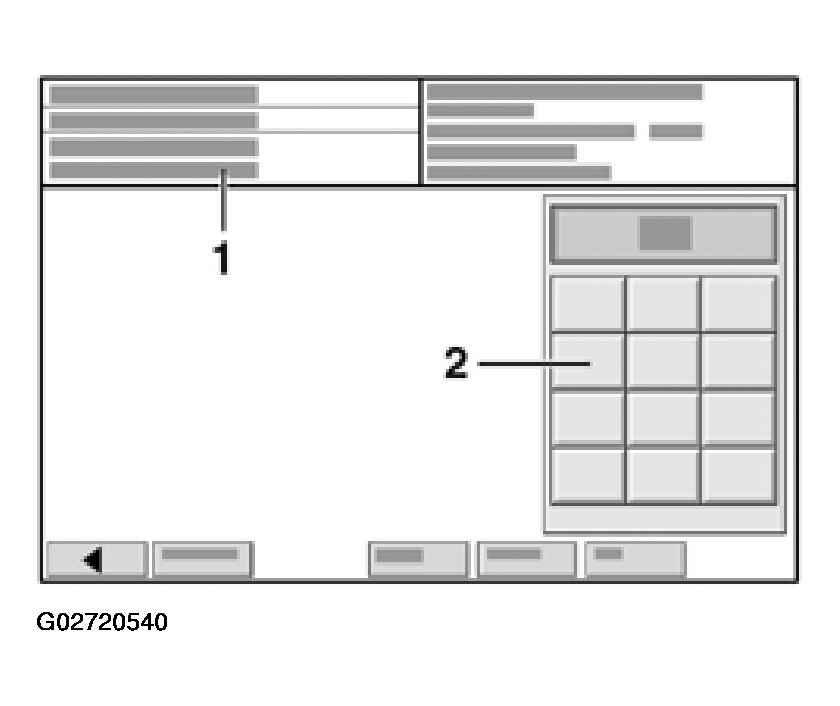

Fig 2: VAS 5051 Tester Display - Adaptation (Instrument Cluster) (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Enter channel number Max. input value = 99

Enter desired adaptation channel in button field -2-. See Adaptation Table .
Press -Q- button to confirm input.

NOTE: After changing an adaptation value or ending an adaptation channel, "10 - Adaptation" function must be selected again before selecting another adaptation channel!

Display on VAS 5051:

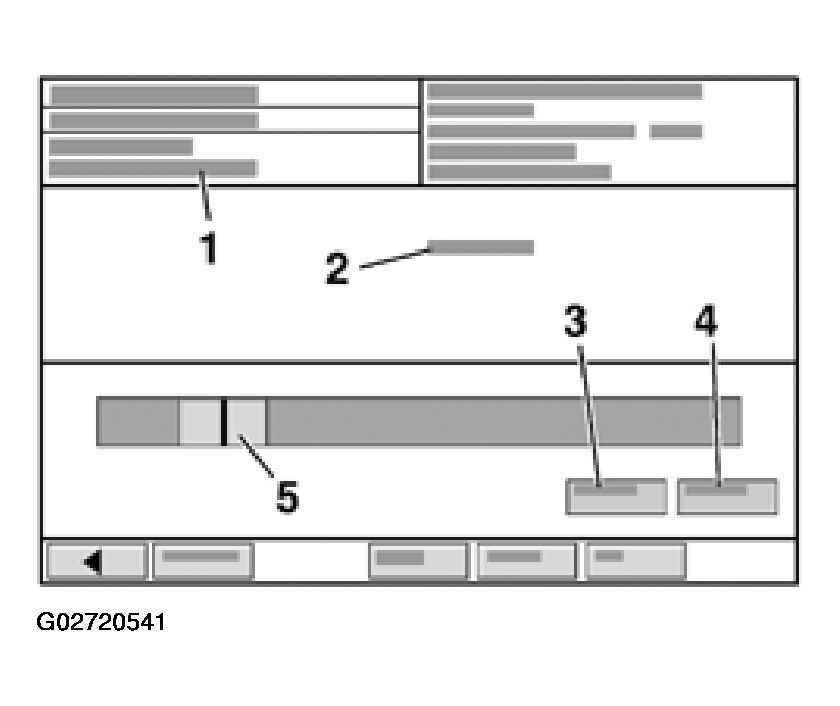

Fig 3: VAS 5051 Tester Display - Adaptation (Instrument Cluster) (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

1 - Channel X read and test
2 - Text display of selected channel or No indication
5 - The sliding bar is positioned on the current adaptation value
