Automatic headlight beam adjustment On Board Diagnostic (OBD)
>>
Read Measuring Value Block (function 08)
>>
Display group 002
Display group 002

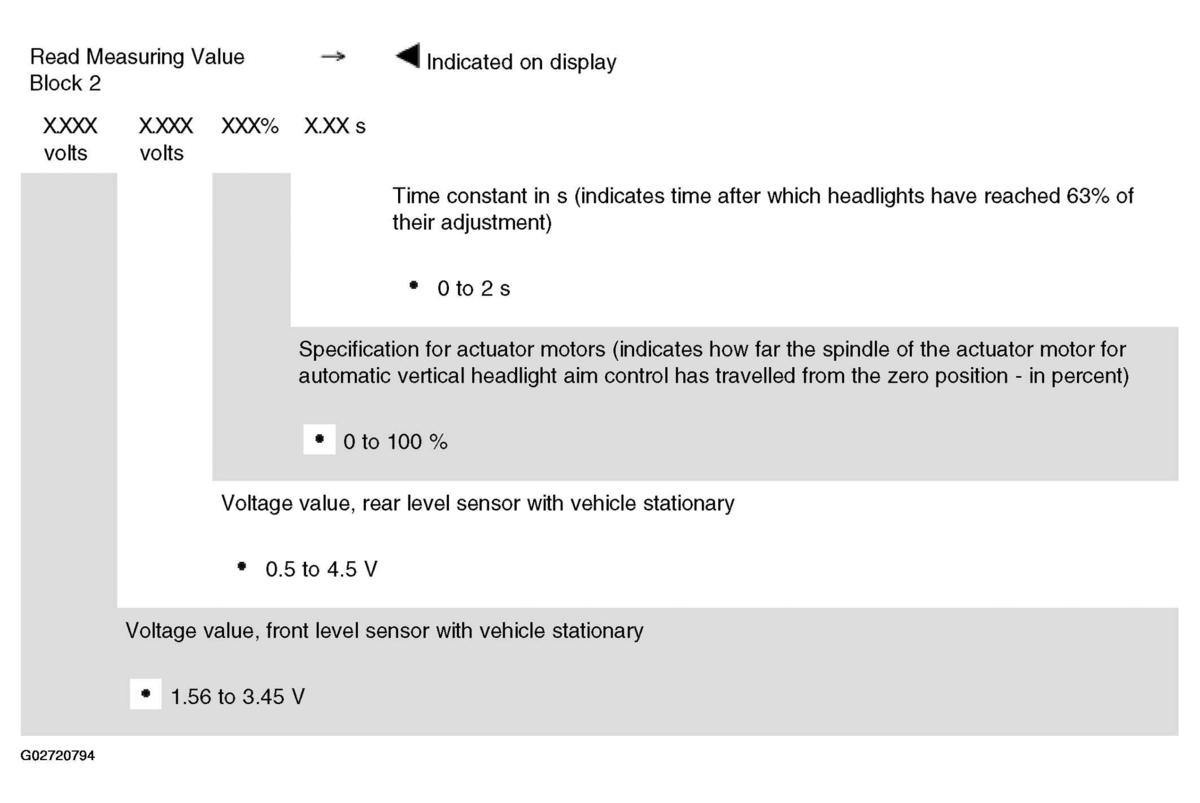

Fig 1: Display Group 002 - Automatic Headlight Aim Control
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
