Erase DTC Memory (function 05): Procedure

After successful DTC memory check:

Display on VAS 5051:

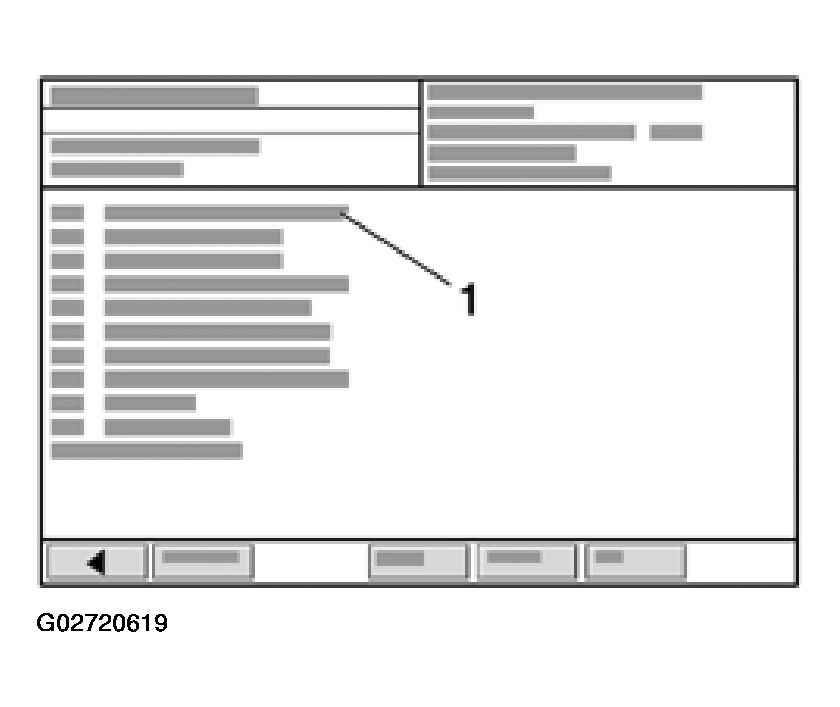

Fig 1: Display On VAS 5051 - Erase DTC Memory (Immobilizer) (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

• In selection -1-, click on the diagnostic function "05 -Check DTC Memory".

Display on VAS 5051:

Fig 2: Display On VAS 5051 - Erase DTC Memory (Immobilizer) (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

1. • no indication (before erasing)

   or

   • DTC memory erased
   NOTE: If indication -1- appears in display field: "DTC memory has not yet been checked", the work sequence was not adhered to correctly. DTC memory can only be erased if DTC memory was checked before.
2. Note: Perform the function? Note: Data is being erased!

• Press on "OK"-button in display -2-.
• End function "05 - Erase DTC Memory" by pressing on <-- button.
