Test sequence

Initiate On Board Diagnostic (OBD) of parking assistance. See PARKING ASSISTANCE ON BOARD DIAGNOSTIC (OBD), INITIATING .

Display on VAS 5051:

Fig 1: Display On VAS 5051 - Output Diagnostic Test Mode (Parking Assistance) (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

In selection -1-, click on the diagnostic function "03 - On Board Diagnostic (OBD)".

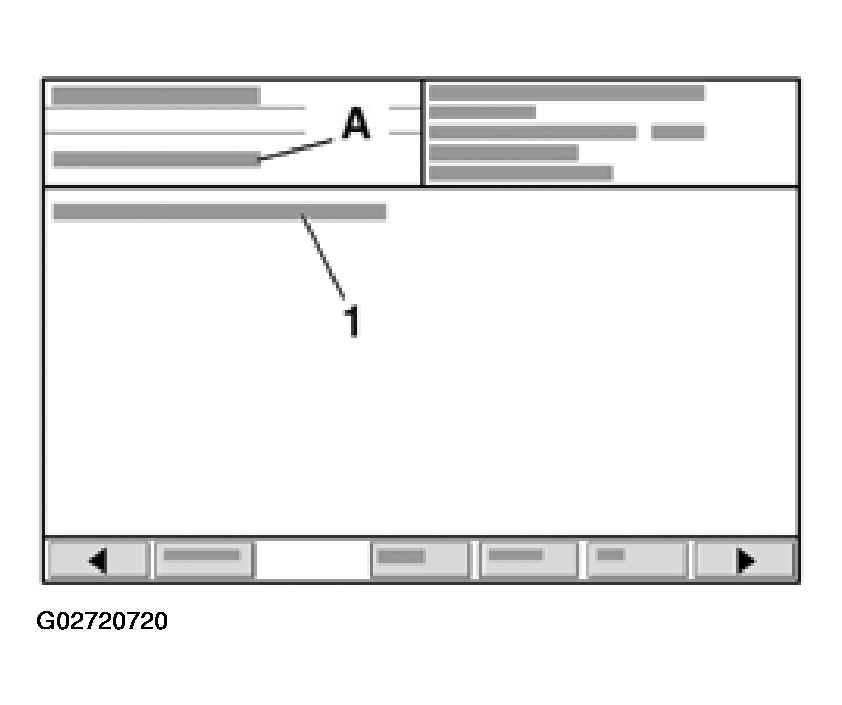

Display on VAS 5051:

Fig 2: Display On VAS 5051 - Output Diagnostic Test Mode (Parking Assistance) (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

A - 1. Actuator in test

1 - Warning buzzer for parking -H15-

Warning buzzer for parking assistance is being activated sounds in intervals.

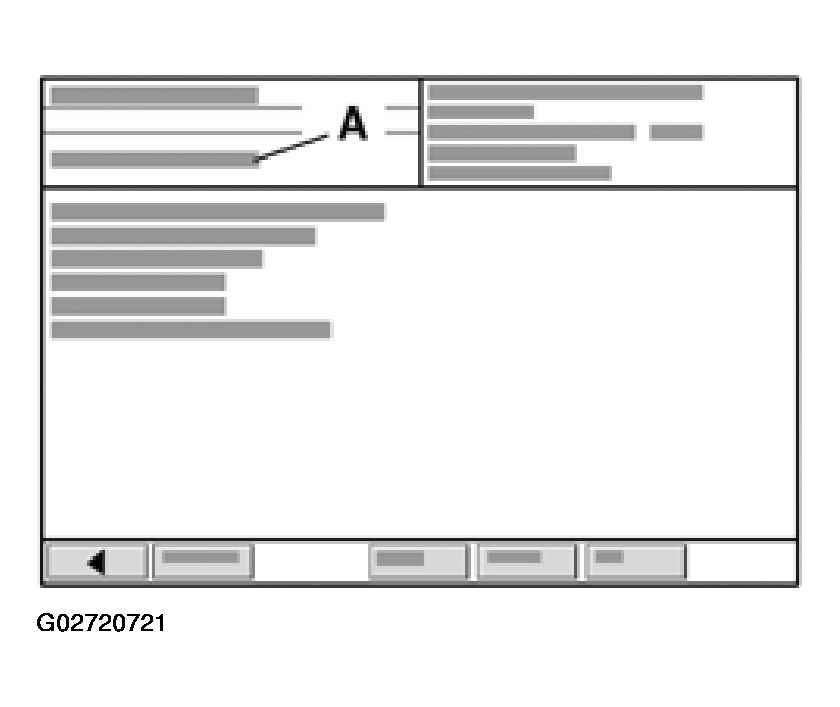

Display on VAS 5051:

Fig 3: Display On VAS 5051 - Output Diagnostic Test Mode (Parking Assistance) (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

A-Actuator test has ended
