Installation position, intake and expansion hoses to power steering pump

Expansion hose

  1. Angle -a- : approx. 57°

Intake line

  1. Angle -b- : approx. 90°

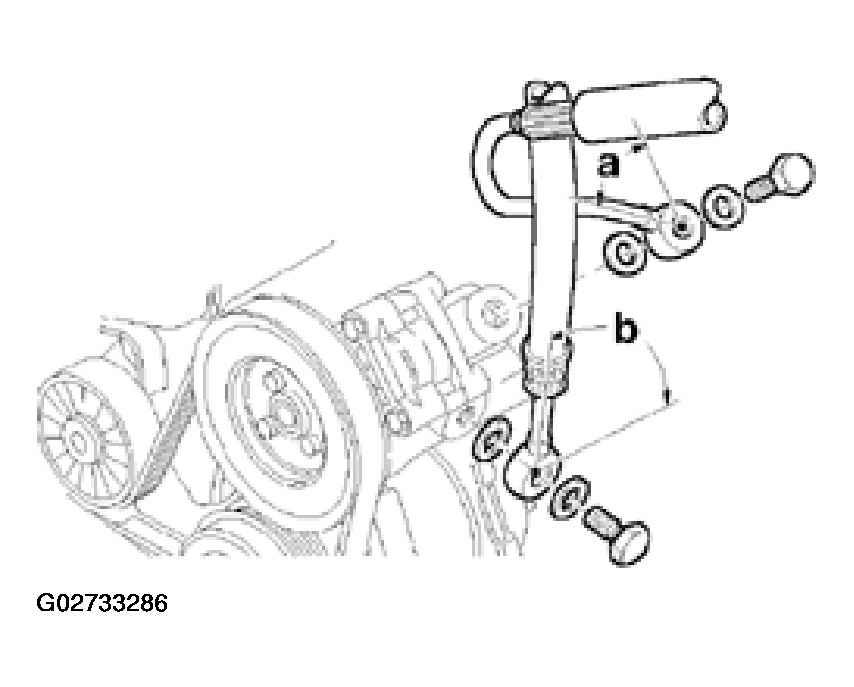

    2. Fig 1: Identifying Installation Position, Intake And Expansion Hoses To Power Steering Pump (8-Cylinder Engine)
    G02733286Courtesy of AUDI OF AMERICA, INC.
