Viscous fan, removing and installing: Installing

• Hold pulley for viscous fan using 3212 spanner wrench and tighten viscous fan using 3312 spanner wrench and 1331 torque wrench (LEFT-HANDED THREAD).

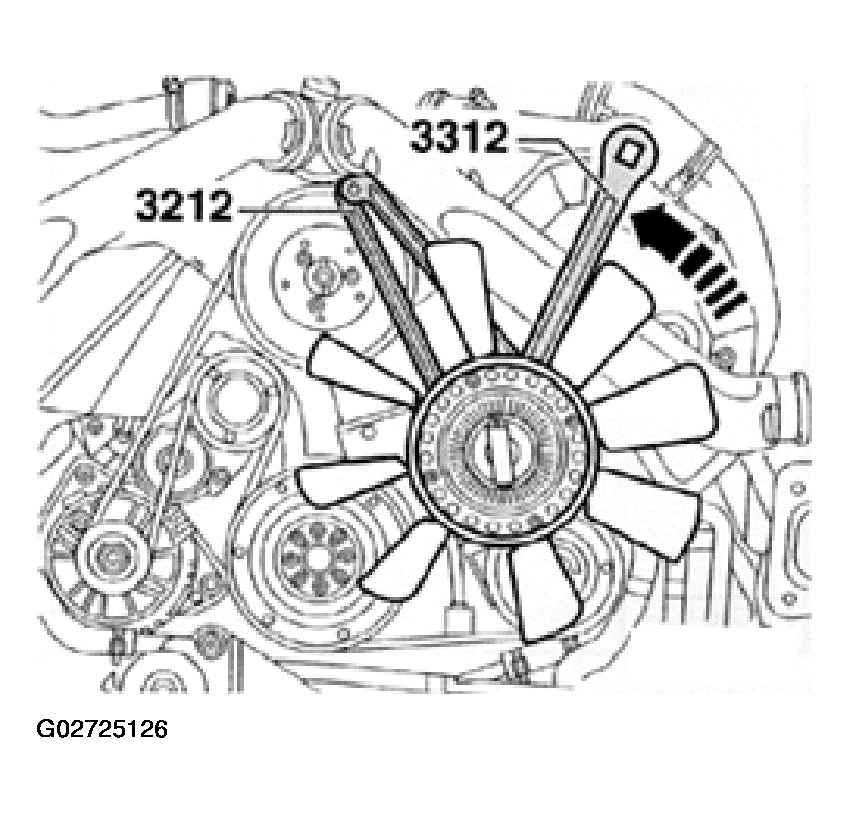

  Fig 1: Installing Viscous Fan Using Open-End Spanner 3312 And Torque Wrench

  Courtesy of AUDI OF AMERICA, INC.

Install in the opposite order to removing. When installing, note the following points:

• Install lock carrier.

  See LOCK CARRIER, SERVICE POSITION .

• Install bumper.

  See FRONT BUMPER .

• Install noise insulation.

  Tightening torque for viscous fan, see TIGHTENING TORQUES: VISCOUS FAN .

  TIGHTENING TORQUES: VISCOUS FAN



  Viscous Fan Wrench	Torque
  Torque wrench VAG 1331 and open-end spanner 3312	37 Nm
  Torque wrench without open-end spanner 3312	70 Nm
