Vehicles with air conditioner

WARNING: Do not open the air conditioner refrigerant circuit.

NOTE: To prevent damage to the condenser and refrigerant lines/hoses, ensure that the lines and hoses are not stretched, kinked or bent.

Fig 1: Removing Cooling Lines For Power Steering Hydraulic Fluid

Courtesy of AUDI OF AMERICA, INC.

Detach air cowls from radiator -4- (left and right). See Fig 2.
Remove securing bolts -1- and -2- for condenser.
Disconnect connector -3- from A/C Pressure Switch -F129-
Lift condenser up out of its bracket, turn it toward side and secure to right-hand front wheel with wire.

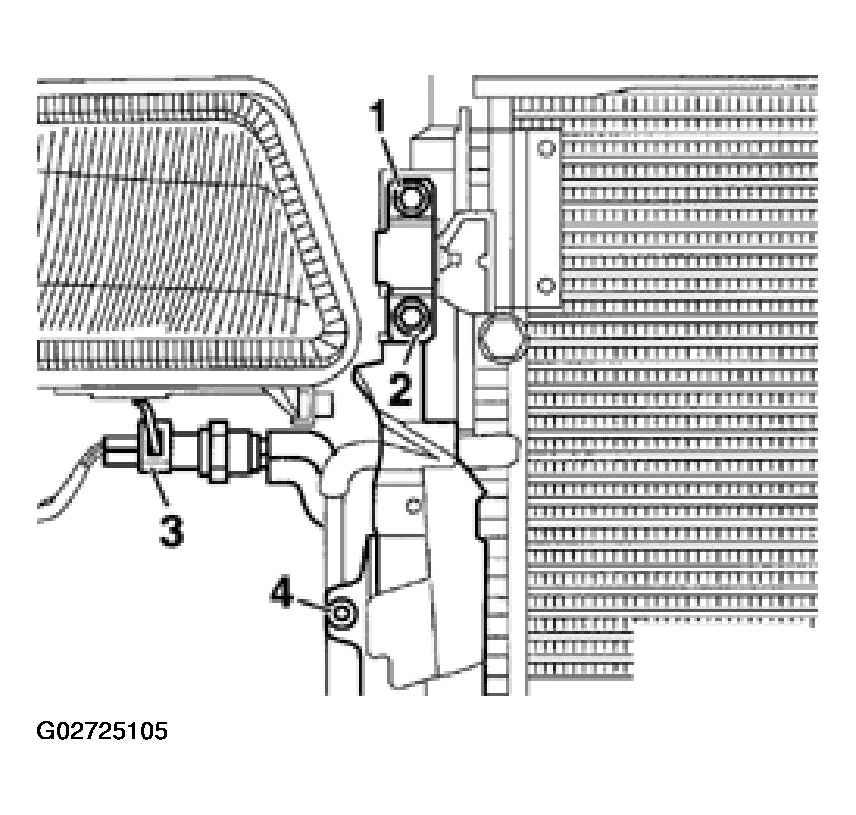

Fig 2: Removing A/C Condensor
Courtesy of AUDI OF AMERICA, INC.
Release two retaining pins for radiator and pull out upward -arrows-.

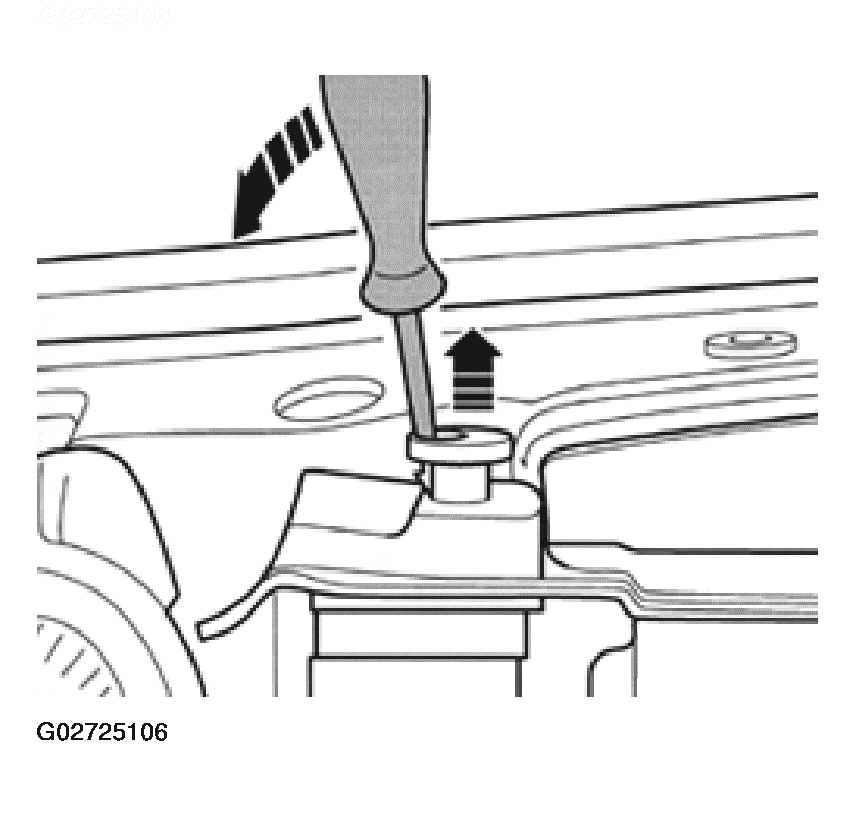

Fig 3: Releasing Two Retaining Pins For Radiator
Courtesy of AUDI OF AMERICA, INC.
Pivot radiator towards front and lift out.
