Cooling system, draining and filling: Draining

• Remove filler cap on coolant expansion tank.
• Remove noise insulation panel.
• Place drip tray VAG 1306 under the engine.

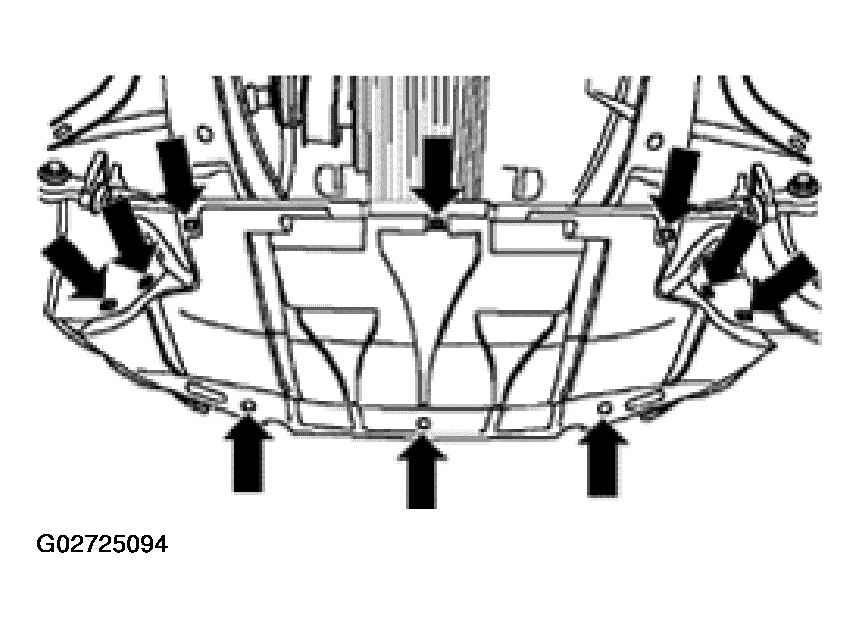

  Fig 1: Removing Noise Insulation Panel

  Courtesy of AUDI OF AMERICA, INC.
• If bumper has been removed from vehicle, open drain tap - arrow - on bottom of radiator (left side) by turning counterclockwise. Install drain hose on connection if necessary.
• If bumper has not been removed from vehicle, pull out retaining clip on bottom hose going from radiator to engine (right side), and pull hose off radiator.

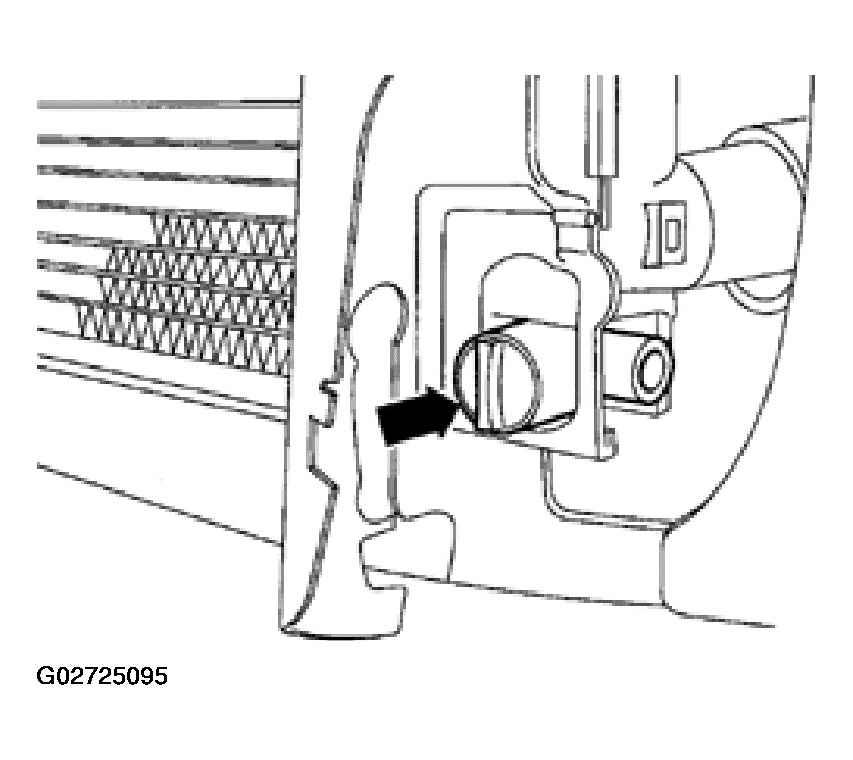

  Fig 2: Locating Radiator Drain Tap

  Courtesy of AUDI OF AMERICA, INC.
• Drain coolant from engine at drain screw - arrow-. See Fig 3.
  NOTE: Observe disposal regulations for coolant.

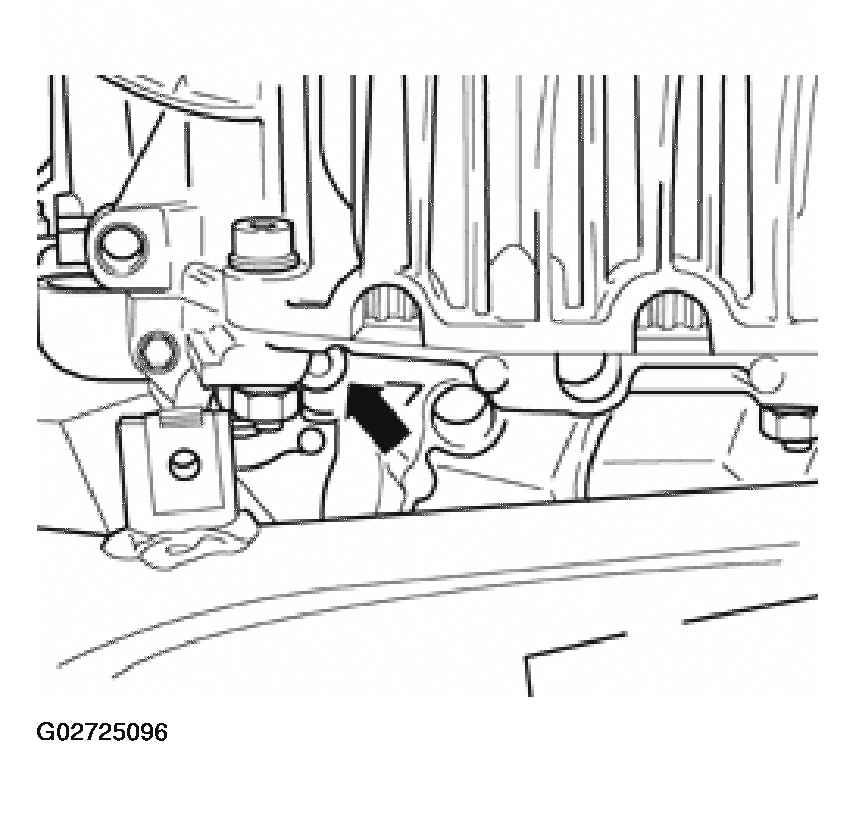

Fig 3: Locating Engine Drain Screw

Courtesy of AUDI OF AMERICA, INC.
