Removing right turbocharger: Notes

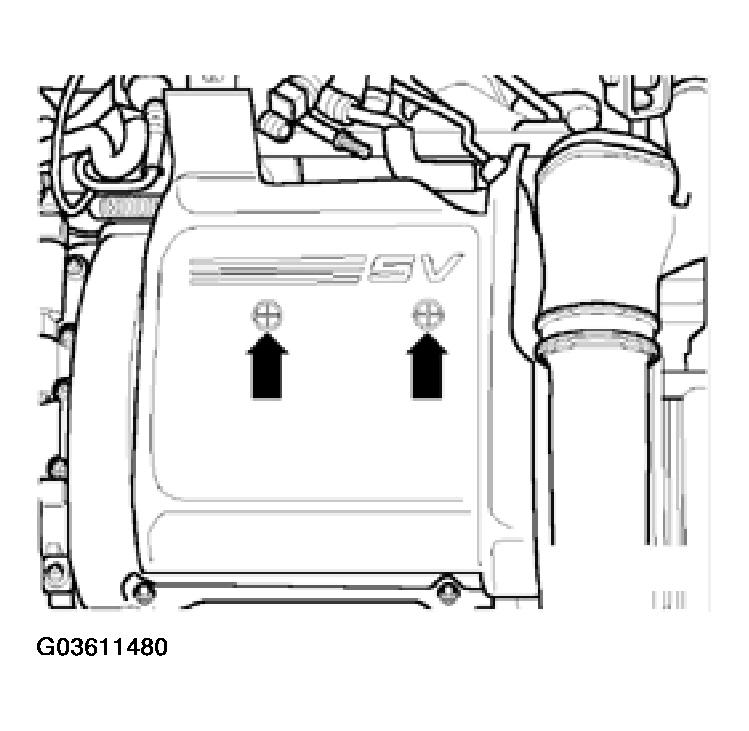

Fig 1: Removing Cover Panel From Right Valve Cover

Courtesy of AUDI OF AMERICA, INC.

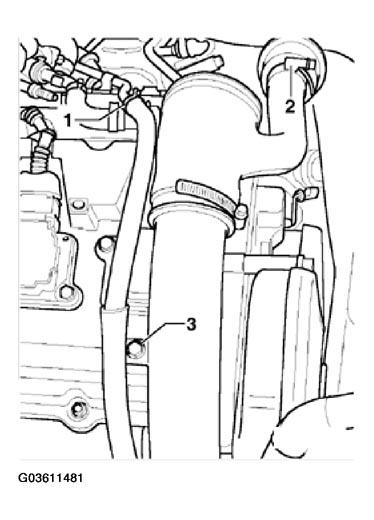

Fig 2: Disconnecting Hose

Courtesy of AUDI OF AMERICA, INC.

NOTE: Seal the lower part of intake manifold.

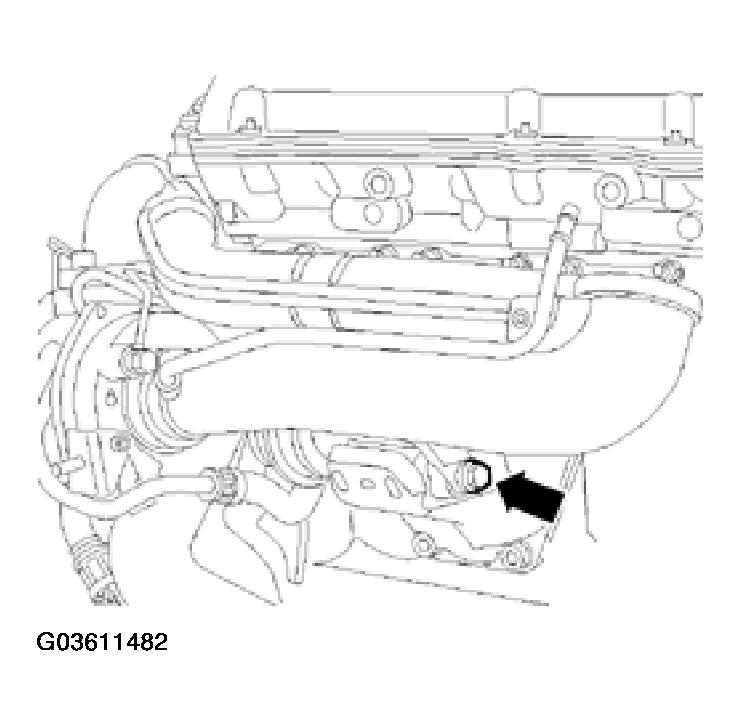

Fig 3: Removing Lower Part Of Intake Manifold

Courtesy of AUDI OF AMERICA, INC.

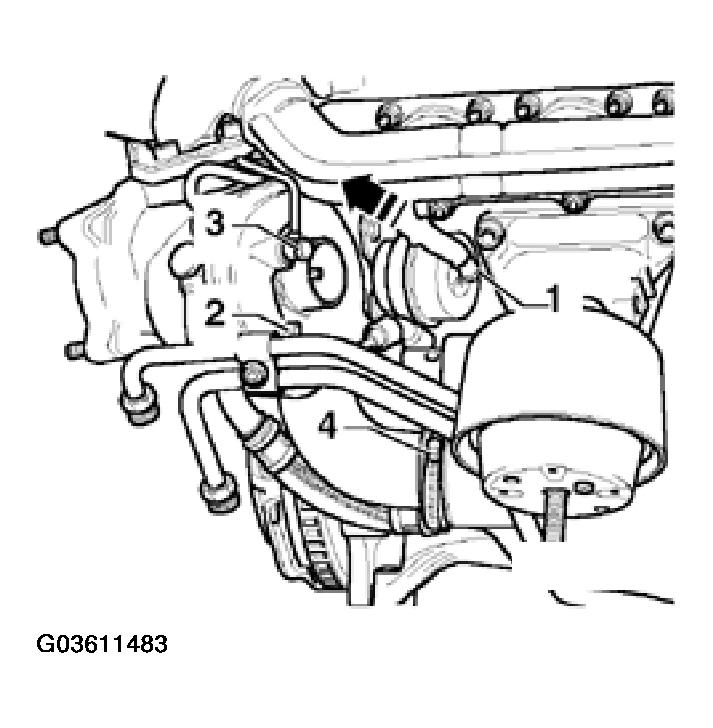

Fig 4: Disconnecting Vacuum Line And Hoses From Turbocharger

Courtesy of AUDI OF AMERICA, INC.

Unbolt oil return line -1-.
Unbolt water pipe -2-.

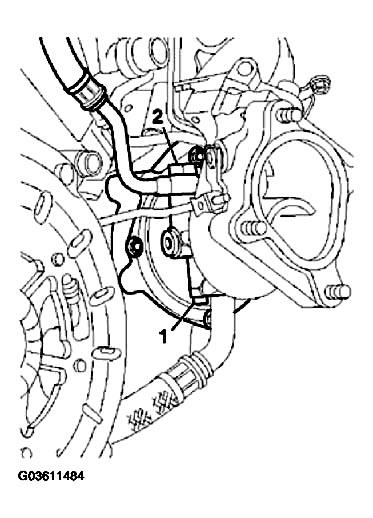

Fig 5: Unbolting Oil Return Line And Water Pipe From Turbocharger
Courtesy of AUDI OF AMERICA, INC.
Remove line (arrow) from cylinder head.

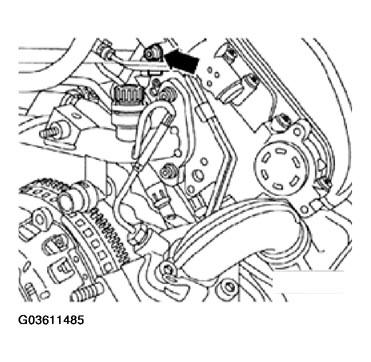

Fig 6: Removing Line From Cylinder Head

Courtesy of AUDI OF AMERICA, INC.

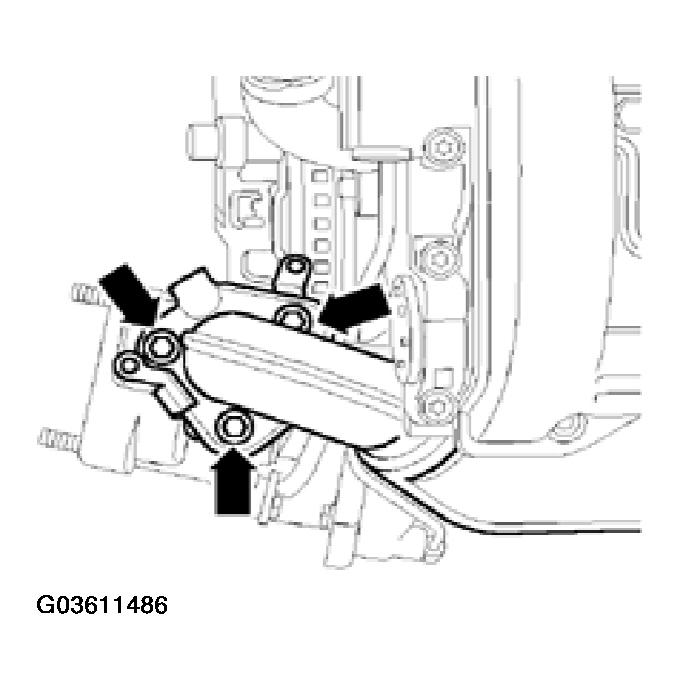

Fig 7: Removing Turbocharger

Courtesy of AUDI OF AMERICA, INC.
