From m.y. 2001:
- Connect VAS 5051 tester to DLC using adapter cable VAS 5051/1 and K-wire adapter cable VAS 6017.
- Optional: Connect VAG 1551 or VAG 1552 Scan Tool (ST) to DLC using VAG 1551/3 adapter cable and K-wire adapter cable VAS 6017.

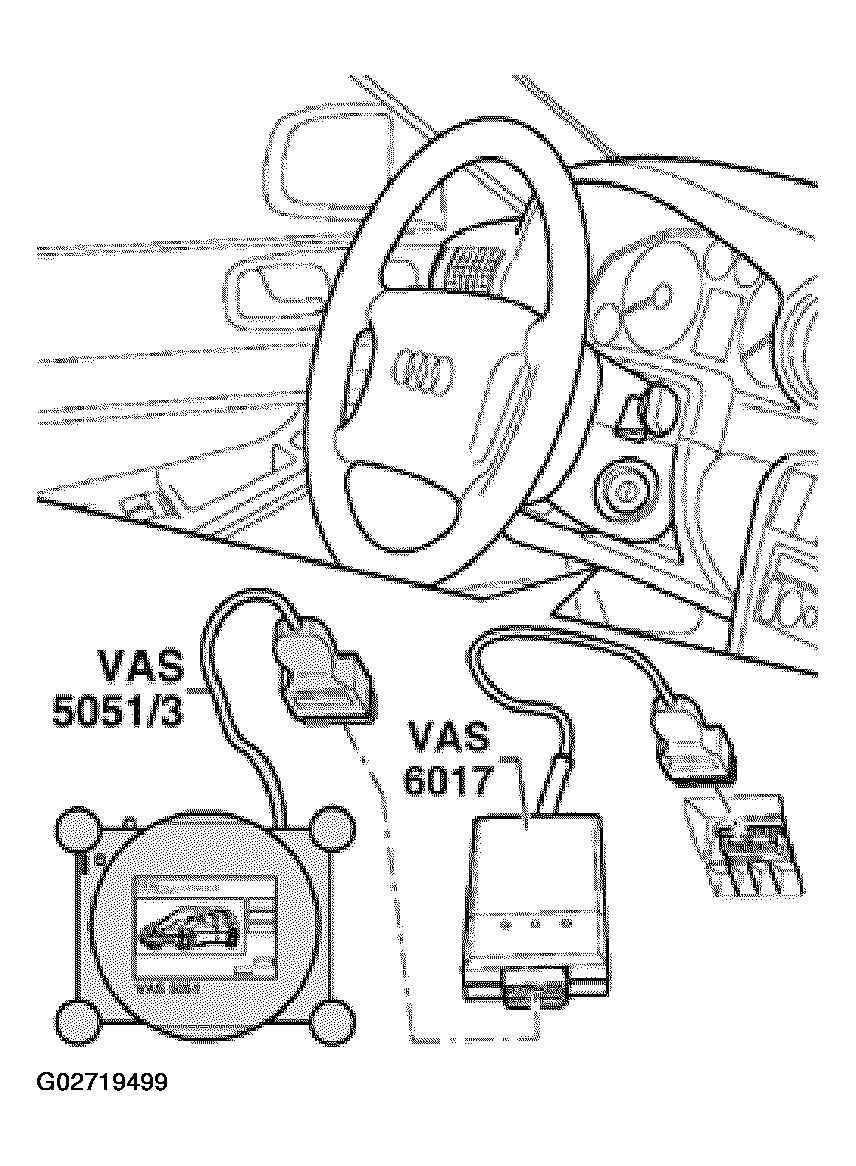

Fig 1: Connecting VAS 5051 Tester To DLC Using Adapter Cable VAS 5051/1 And K-Wire Adapter Cable VAS 6017 (From M.Y. 2001)
WARNING:
- During road tests, vehicle, test equipment must always be fastened to and operated from the rear seat by a second technician.
- Observe safety precautions. See SAFETY PRECAUTIONS .
