Display group 001

NOTE: Some OBD program text/data generated by control modules may not be recognized by VAG 1551/1552 scan tools with the latest program card. For example: scan tool display shows "text 799", "01529 /references" or similar. In these cases, use VAS 5051 tester instead.

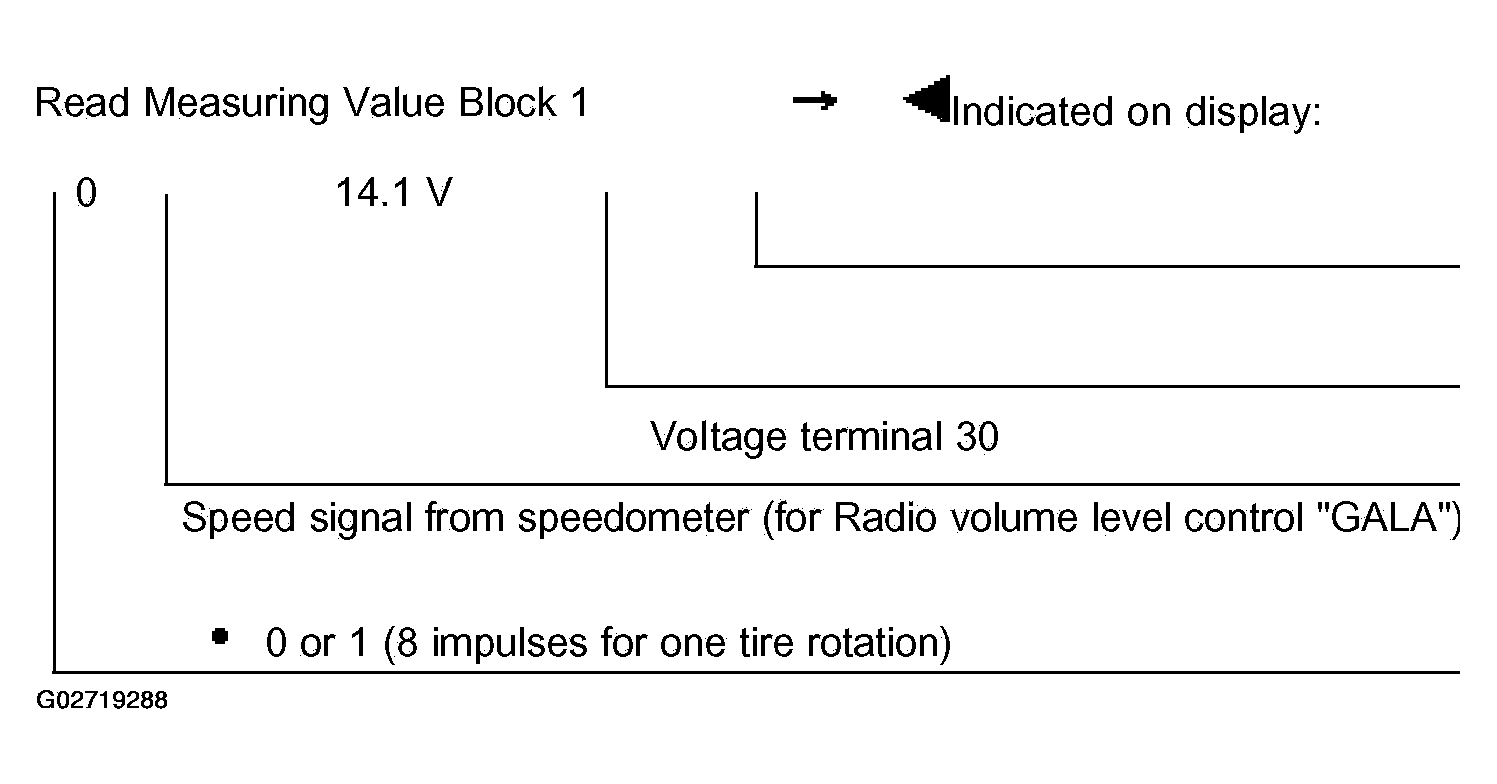

Fig 1: Display Group 001 - Navigation System IV, From 2002
G02719288Courtesy of AUDI OF AMERICA, INC.
