Adaptation (function 10)
>>
Adaptation table:
Adaptation table:

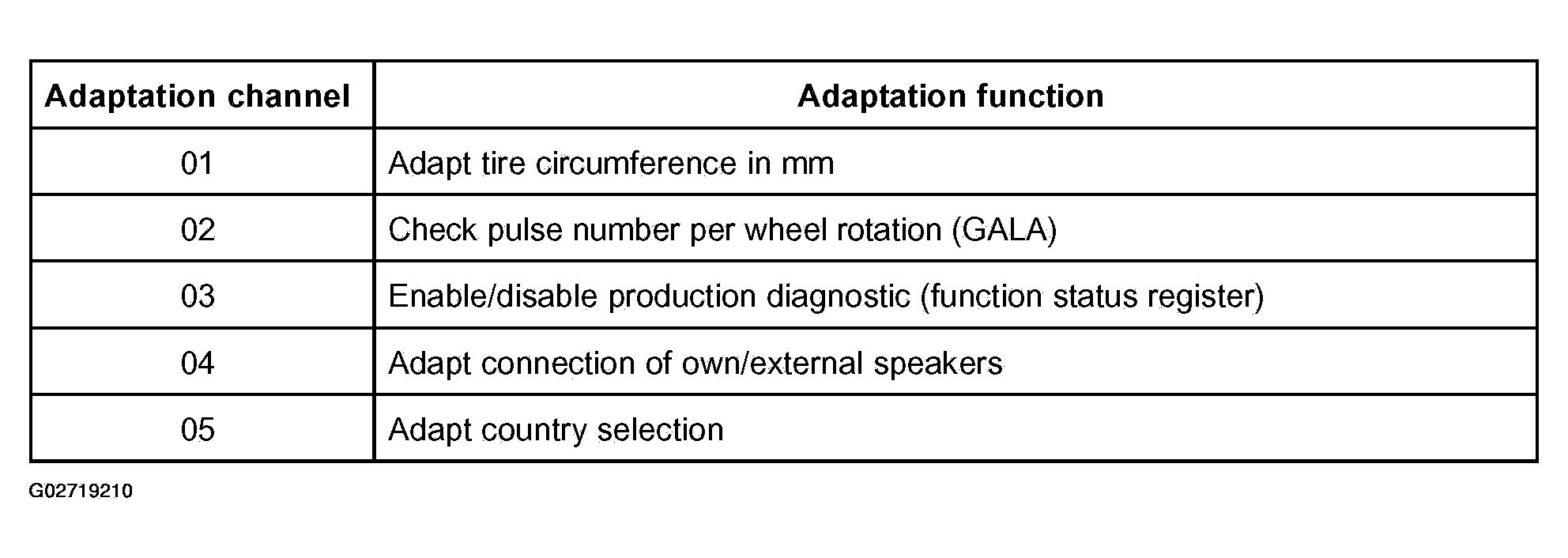

Fig 1: Adaptation (Function 10) Table - Navigation System III, Through M.Y. 2001
Courtesy of AUDI OF AMERICA, INC.
NOTE:
In the previous graphic refer to:
TIRE CIRCUMFERENCE, ADAPTING
IMPULSE NUMBER/WHEEL ROTATION (GALA), CHECKING
PRODUCTION DIAGNOSTIC FUNCTION (FUNCTION STATUS REGISTER), ENABLING/DISABLING
SPEAKER CONNECTION, ADAPTING
COUNTRY SELECTION, ADAPTING
Courtesy of AUDI OF AMERICA, INC.
