Perform "Read Measuring Value Block"

Display:

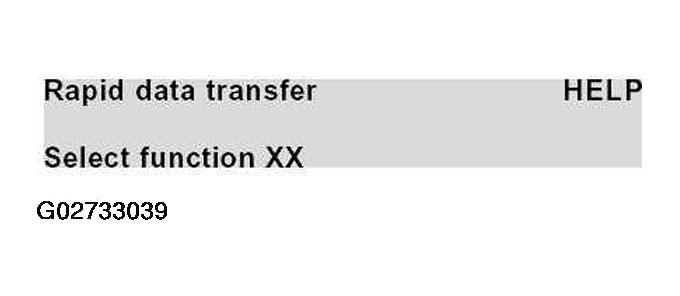

Fig 1: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

• Press Buttons 0 and 8 (08 selects the "Read Measuring Value Block" function).

Display:

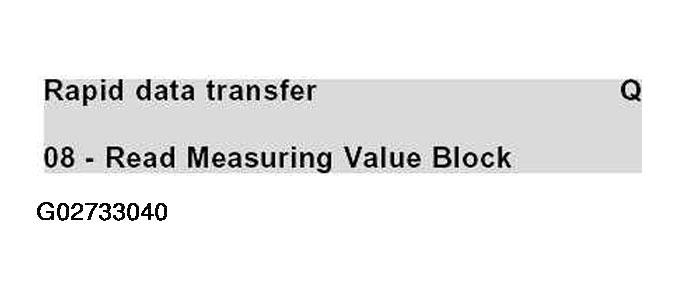

Fig 2: VAG 1551 Scan Tool - 08 - Read Measuring Value Book

Courtesy of AUDI OF AMERICA, INC.

• Confirm entry using the Q button

Display:

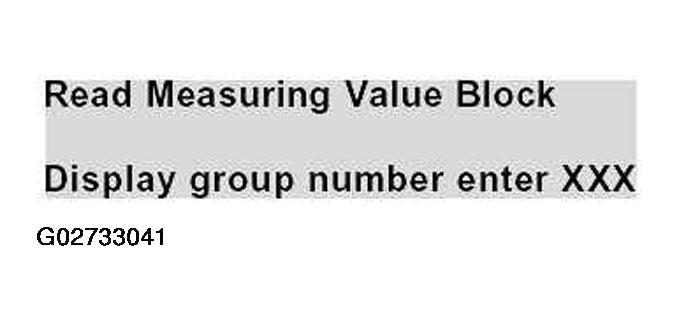

Fig 3: VAG 1551 Scan Tool - Display Group Number Enter XXX

Courtesy of AUDI OF AMERICA, INC.

• Enter display group number and confirm using the Q button.

The measured value block selected is now displayed in standardized form.
