Measured value block 006

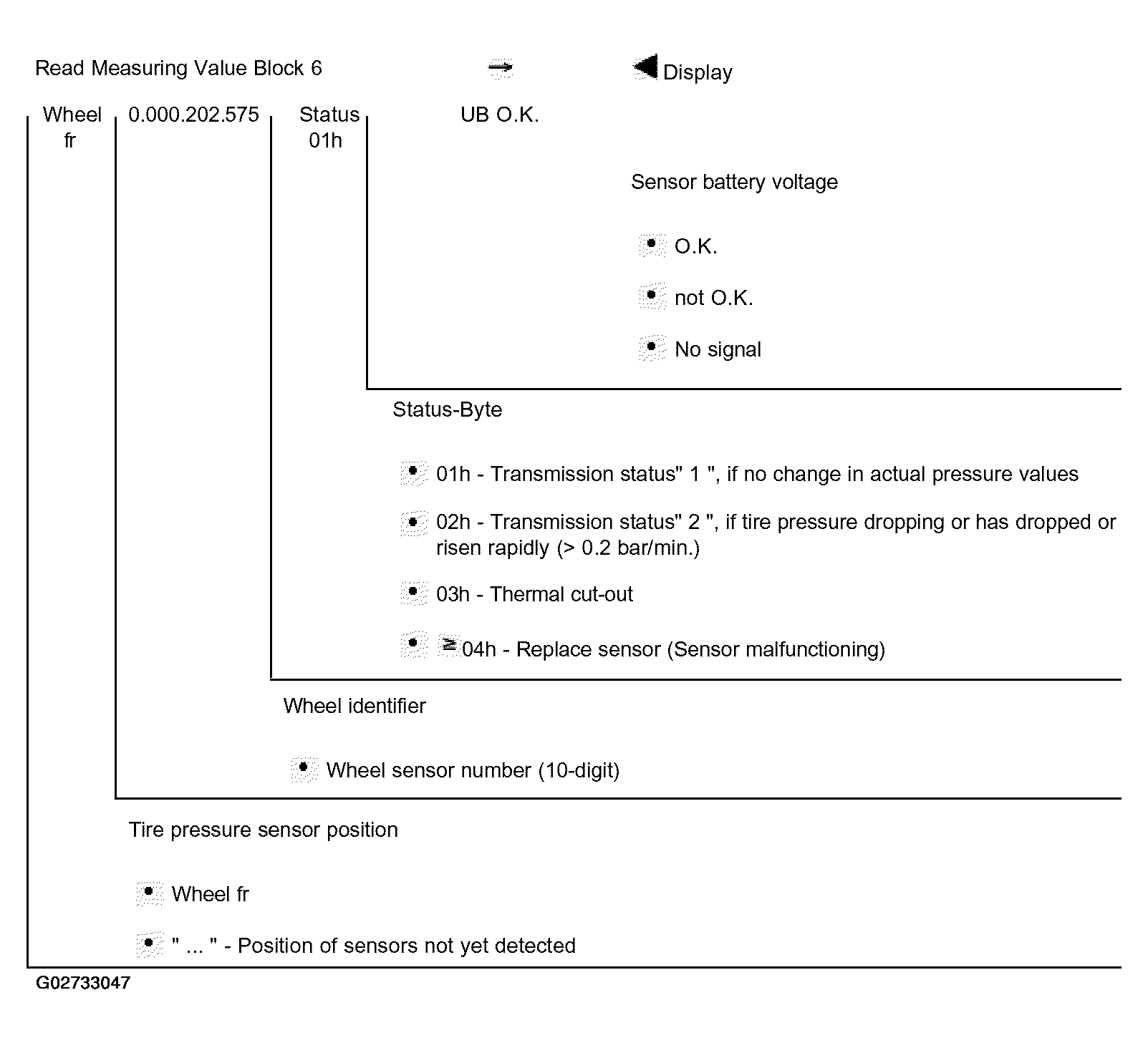

Fig 1: VAG 1551 Scan Tool - Measured Value Block 006

G02733047

Courtesy of AUDI OF AMERICA, INC.

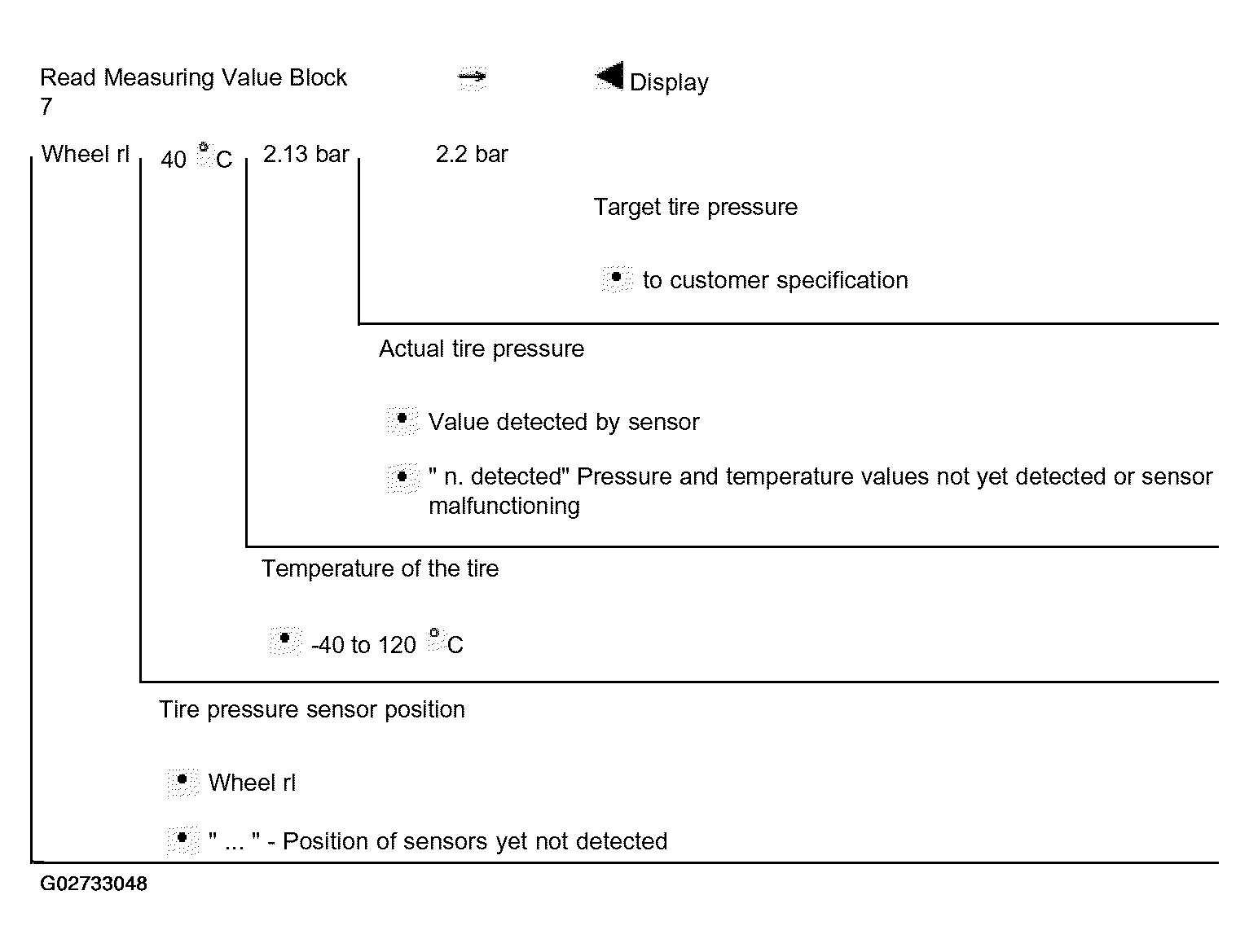

Fig 2: VAG 1551 Scan Tool - Measured Value Block 007

G02733048

Courtesy of AUDI OF AMERICA, INC.
