Check Control Module Versions (function 01)

Display:

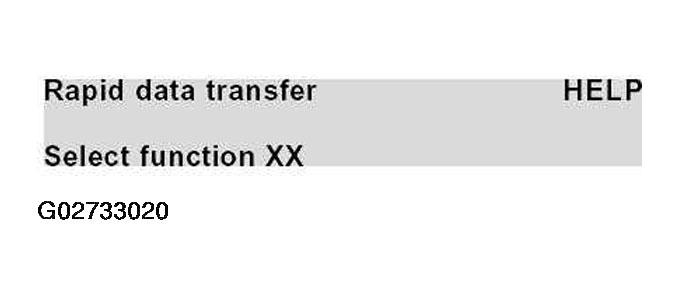

Fig 1: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

• Press Buttons 0 and 1 (01 selects the "Check Control Module Versions" function).

Display:

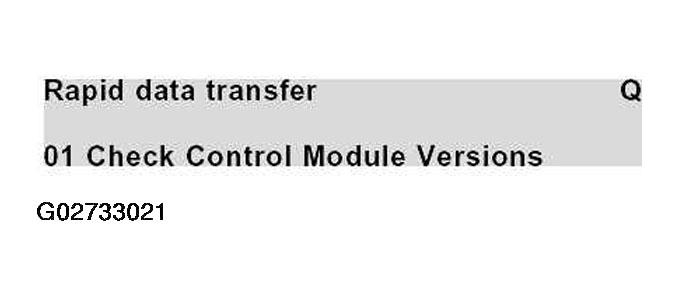

Fig 2: VAG 1551 Scan Tool - 01 Check Control Module Versions

Courtesy of AUDI OF AMERICA, INC.

• Confirm entry using the Q button
• Appears on the display after approx. 5 sec.:
  Fig 3: VAG 1551 Scan Tool - Code 20329 (Example Code)

  Courtesy of AUDI OF AMERICA, INC.
  • 4D0907273: Part number
  • Tire pressure monitoring system: Component designation
  • D209: Control module software version
  • Code 20329: Code Control Module
  • WSC 06812: Workshop code
• Press the --> button.
