Perform Function "10 - Adaptation"

Display:

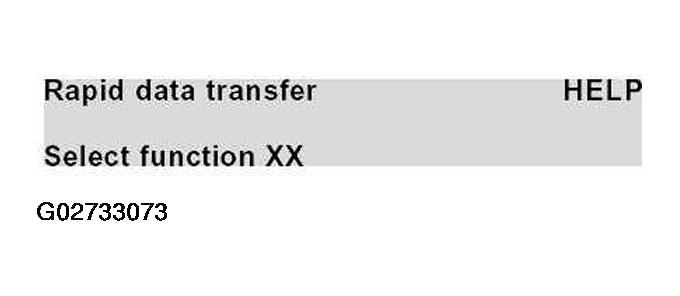

Fig 1: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

Press Buttons 1 and 0 (10 selects the "Adaptation" function).

Display:

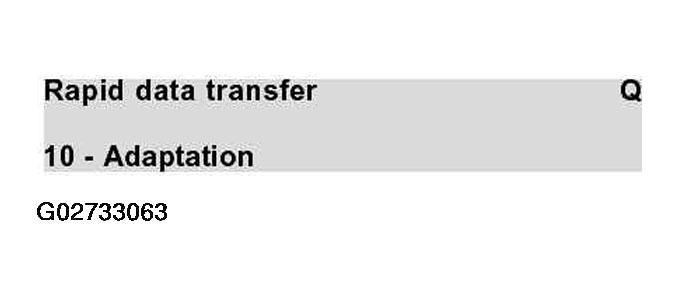

Fig 2: VAG 1551 Scan Tool - 10 - Adaptation

Courtesy of AUDI OF AMERICA, INC.

Confirm entry using the Q button.

Display:

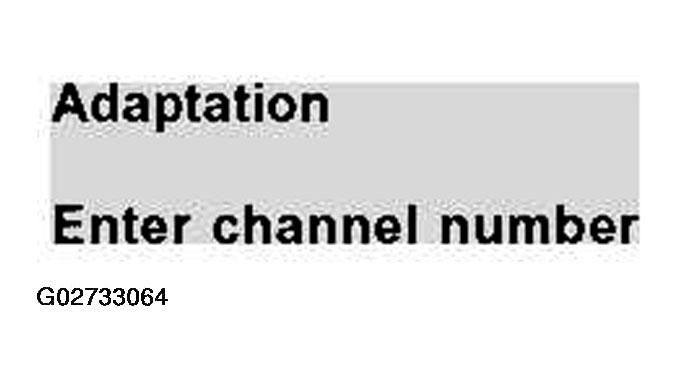

Fig 3: VAG 1551 Scan Tool - Enter Channel Number

Courtesy of AUDI OF AMERICA, INC.

Enter required Adaptation channel 17.
Confirm entry using the Q button.

Display:

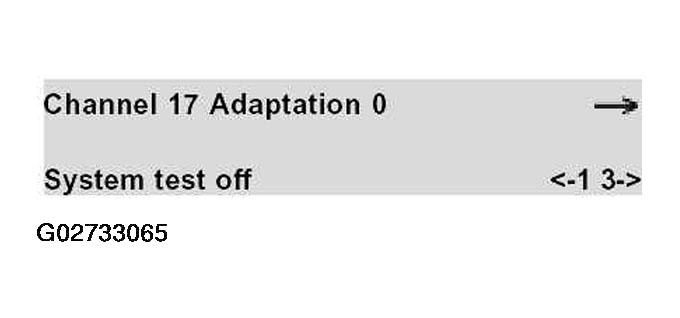

Fig 4: VAG 1551 Scan Tool - System Test Off

Courtesy of AUDI OF AMERICA, INC.

Press the --> button.

Display

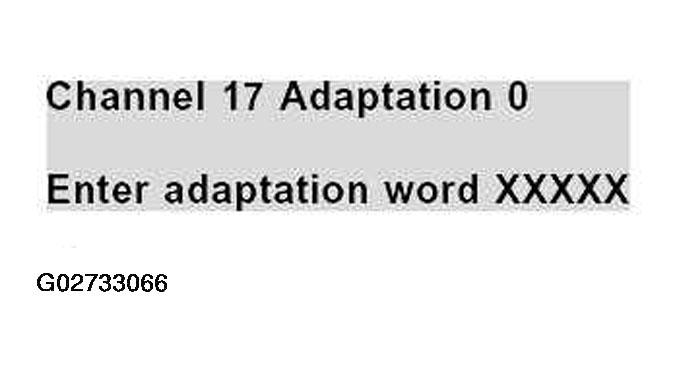

Fig 5: VAG 1551 Scan Tool - Enter Adaptation Word XXXXX

Courtesy of AUDI OF AMERICA, INC.

Keyboard entry: 0001

Display

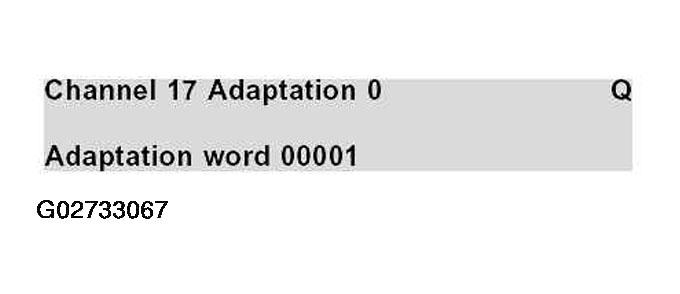

Fig 6: VAG 1551 Scan Tool - Adaptation Word 00001

Courtesy of AUDI OF AMERICA, INC.

Confirm entry using the Q button.

Display

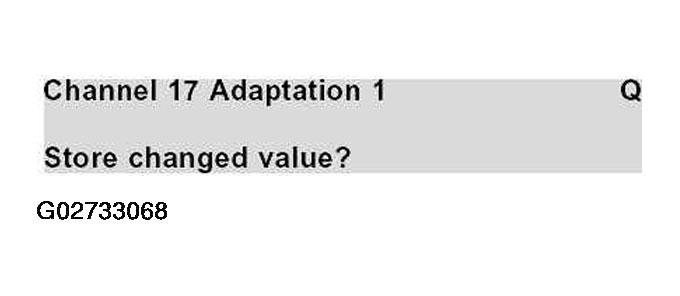

Fig 7: VAG 1551 Scan Tool - Store Changed Value?

Courtesy of AUDI OF AMERICA, INC.

Confirm entry using the Q button.

Display

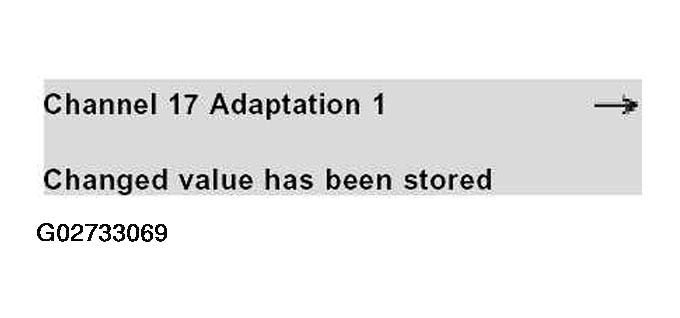

Fig 8: VAG 1551 Scan Tool - Changed Value Has Been Stored

Courtesy of AUDI OF AMERICA, INC.

Press the --> button.

The following must now be displayed in Channel 17:

Display

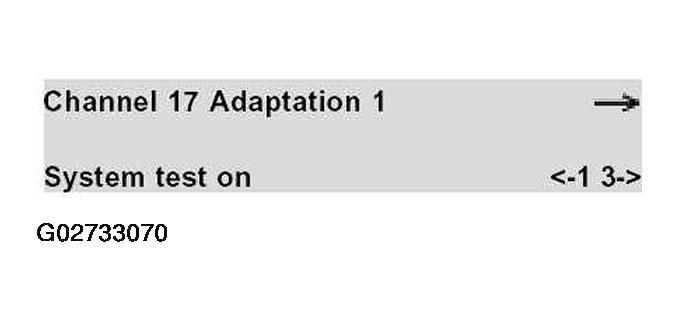

Fig 9: VAG 1551 Scan Tool - System Test On

Courtesy of AUDI OF AMERICA, INC.

Press the --> button.

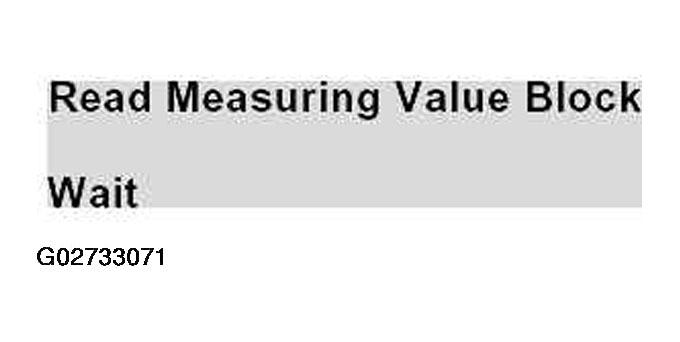

The following must now be displayed in measured value block 021:

Display:

Fig 10: VAG 1551 Scan Tool - Display (Diagnosis Completed)

Courtesy of AUDI OF AMERICA, INC.

When antenna diagnosis is completed:

Display

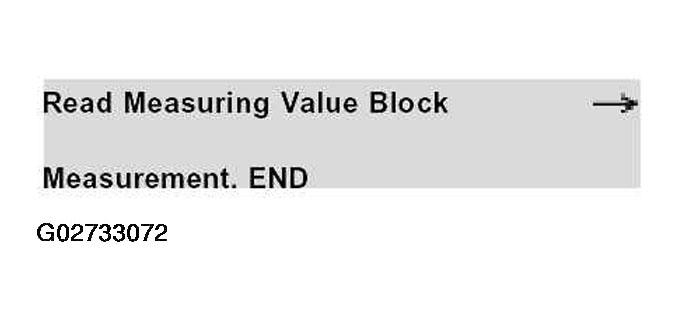

Fig 11: VAG 1551 Scan Tool - Measurement End

Courtesy of AUDI OF AMERICA, INC.

Press the --> button.
Read out the DTC memory. See CHECK DTC MEMORY (FUNCTION 02) .
Press Buttons 0 and 6 (06 selects the "End Output" function)

Display:

Fig 12: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.
