Height dimension, determining

The height dimension x is the value in mm between wheel center and lower edge of fender. See Fig 1 .

• Measure rim diameter.

Measure value determines dimension: a

• Measure vertically from upper edge of rim to lower edge of fender

Measure value determines dimension: b

Height dimension x results from:

x = a / 2 + b

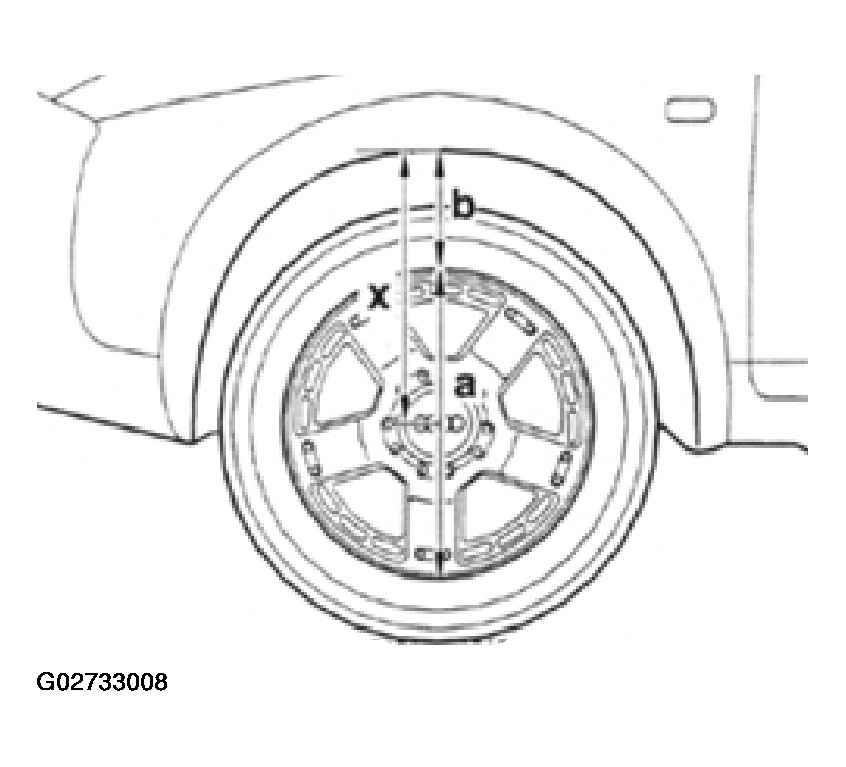

Fig 1: Identifying Height Dimension Measuring Points

Courtesy of AUDI OF AMERICA, INC.

• After performing basic setting, check whether height dimension x = 402mm +/- 5 mm. If this is not the case, repeat basic setting.
• After performing basic setting, check whether height difference between left and right side is not larger than +/- 4 mm. If this is not the case, repeat basic setting.

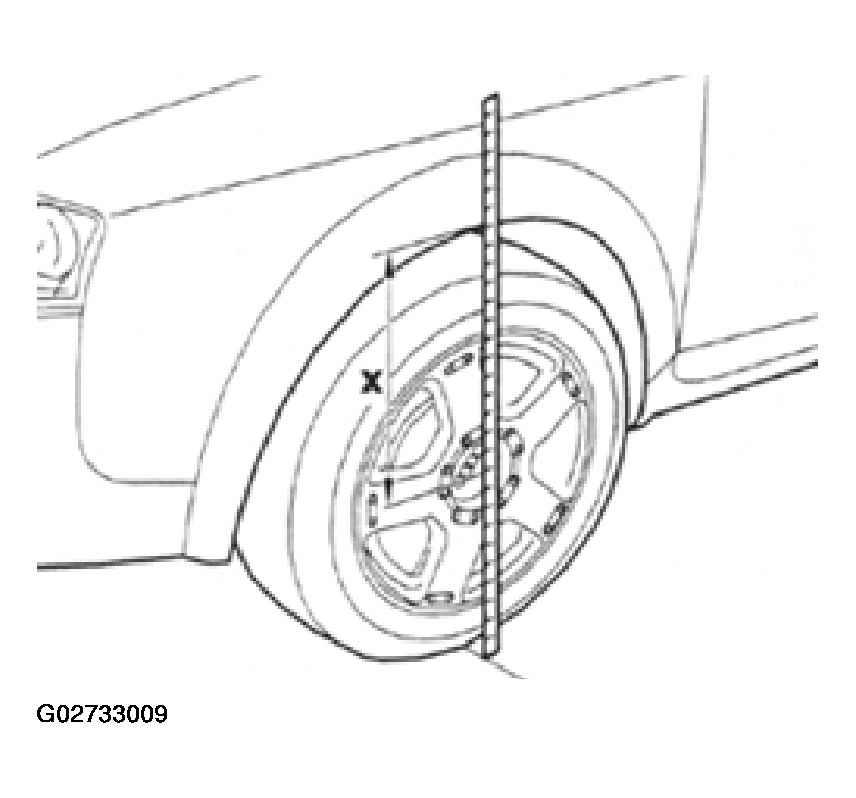

Fig 2: Checking Height Dimension

Courtesy of AUDI OF AMERICA, INC.
