Perform Function "08 - Read Measuring Value Block"

Display:

Fig 1: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

• Press Buttons -0- and -8-.

Display:

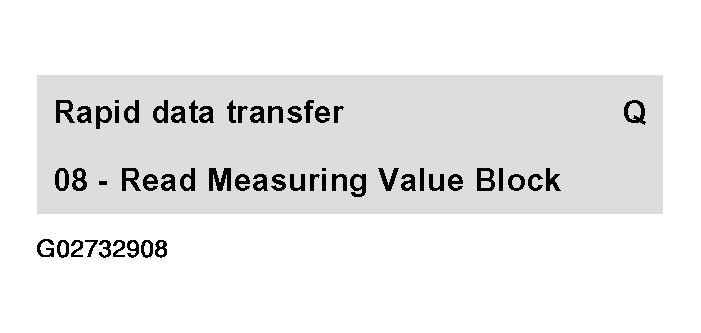

Fig 2: VAG 1551 Scan Tool - 08 - Reading Measuring Value Block

Courtesy of AUDI OF AMERICA, INC.

• Confirm the entry using the Q button.

Display:

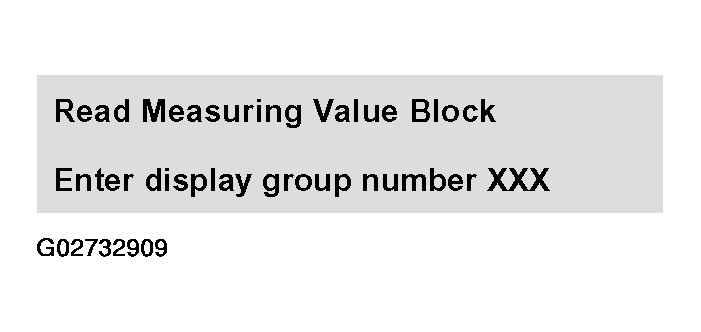

Fig 3: VAG 1551 Scan Tool - Enter Display Group Number XXX

Courtesy of AUDI OF AMERICA, INC.

• Enter the display group number 001 and confirm using the Q button.

The selected measured value block is now displayed in standardized form. See MEASURING VALUE BLOCK OVERVIEW  .
