Perform Function 03 - "Output Diagnostic Test Mode"

NOTE: In performance of Output Diagnostic Test Mode using the VAS5051 tester, the text is shown on the display. Only figures are displayed if the VAG1551 tester is used (see below e.g. 01782/Literature)

Display:

Fig 1: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

Press Buttons -0- and -3-.

Display:

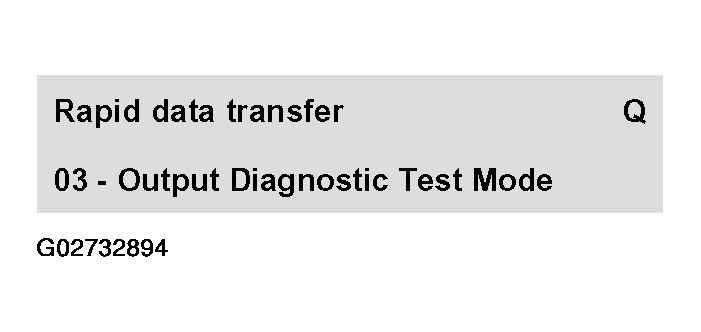

Fig 2: VAG 1551 Scan Tool - Output Diagnostic Test Mode

Courtesy of AUDI OF AMERICA, INC.

Confirm the entry using the Q button.

Display:

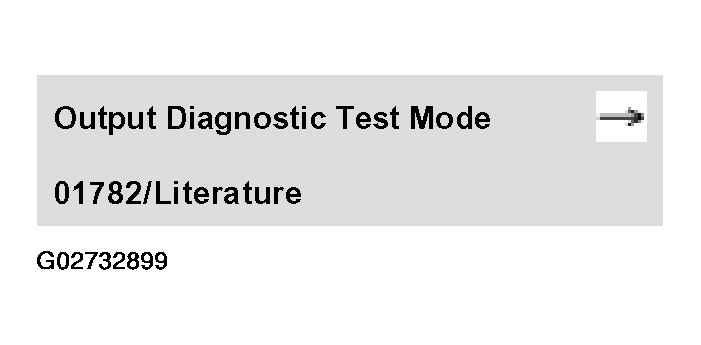

Fig 3: VAG 1551 Scan Tool - 01782/Literature

Courtesy of AUDI OF AMERICA, INC.

01782: Vehicle is adjusted to standard height.

The indicator light on the instrument cluster flashes at 1 Hz.

Check visually whether the vehicle is horizontal.

Press the --> button.

NOTE: The indicator light flashes at 1 Hz throughout the final control test.

Display:

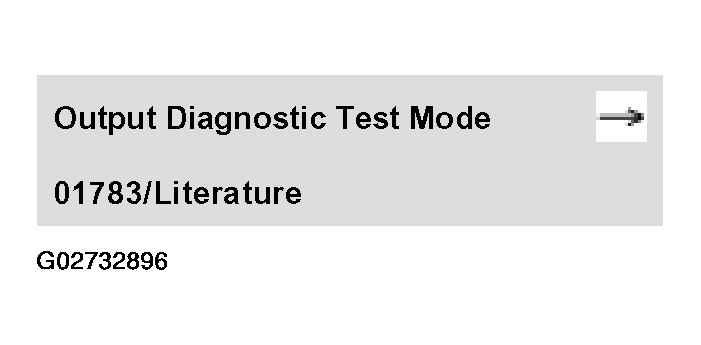

Fig 4: VAG 1551 Scan Tool - 01783/Literature

Courtesy of AUDI OF AMERICA, INC.

01783: Actuation of the LED's on the self leveling suspension system operating unit.

All LED's on the operating unit illuminate in sequence.

Press the --> button.

Display:

Fig 5: VAG 1551 Scan Tool - 01784/Litrature

Courtesy of AUDI OF AMERICA, INC.

01784: Vehicle is lowered at front left.

The vehicle is lowered at front left by releasing air until the --> button is pressed or until the stop time (approx. 30 s).

Press the --> button.

Display:

Fig 6: VAG 1551 Scan Tool - 01785/Litrature

Courtesy of AUDI OF AMERICA, INC.

01785: Vehicle is lowered at front right

The vehicle is lowered at front right by releasing air until the --> button is pressed or until the stop time (approx. 30 s).

Press the --> button.

Display:

Fig 7: VAG 1551 Scan Tool - 01782/Litrature

Courtesy of AUDI OF AMERICA, INC.

01782: Vehicle is adjusted to standard height.

Vehicle is raised back to standard height at the front.

Press the --> button.

Display:

Fig 8: VAG 1551 Scan Tool - 01786/Litrature

Courtesy of AUDI OF AMERICA, INC.

01786: Vehicle is lowered at rear left.

The vehicle is lowered at rear left by releasing air until the --> button is pressed or until the stop time (approx. 30 s).

Press the --> button.

Display:

Fig 9: VAG 1551 Scan Tool - 01787/Literature

Courtesy of AUDI OF AMERICA, INC.

01787:Vehicle is lowered at rear right

The vehicle is lowered at rear right by releasing air until the --> button is pressed or until the stop time (approx. 30 s).

Press the --> button.

Display:

Fig 10: VAG 1551 Scan Tool - 01782/Literature

Courtesy of AUDI OF AMERICA, INC.

01782: Vehicle is adjusted to standard height.

The vehicle is adjusted to standard height at the rear axle

Press the --> button.

Display:

Fig 11: VAG 1551 Scan Tool - 01852/Literature

Courtesy of AUDI OF AMERICA, INC.

01825: Pressure accumulator being tested.

The pressure accumulator is charged and discharged.

Press the --> button.

Display:

Fig 12: VAG 1551 Scan Tool - 01789/Literature

Courtesy of AUDI OF AMERICA, INC.

The result of the pressure accumulator test is displayed

01789: Test O.K.

01790: Test not O.K.

In case of display 01790

Check DTC Memory. See DTC TABLE, FOUR-WHEEL SELF LEVELING SUSPENSION SYSTEM .

Press the --> button.

Display:

Fig 13: VAG 1551 Scan Tool - Output Diagnostic Test Mode End

Courtesy of AUDI OF AMERICA, INC.

Press the --> button

The tester is now in the basic function mode again.

Display:

Fig 14: VAG 1551 Scan Tool - Select Function XX

Courtesy of AUDI OF AMERICA, INC.
