On Board Diagnostic (OBD) system, function

Check preconditions:

Power supply and fuses for the particular system O.K.
Connect scan tool VAG1551. See VAG1551 SCAN TOOL, CONNECTING AND SELECTING ADDRESS WORD .
Switch on ignition

NOTE:

Malfunctions which occur only for a short time are indicated as "sporadically occurring malfunctions" by means of "/SP" on the right in the display.
Additional instruction for use can be checked using the HELP button on the VAG1551.
The --> button is used to move one step further in the program sequence.

Activate printer using the PRINT button (indicator light in the button illuminates).
Press Button 1 for "Rapid data transfer".

Display:

Fig 1: VAG 1551 Scan Tool - Enter Address Word XX

G02732880

Courtesy of AUDI OF AMERICA, INC.

Address word for the self leveling suspension system: 34

Press Buttons -3- and -4-.

Display:

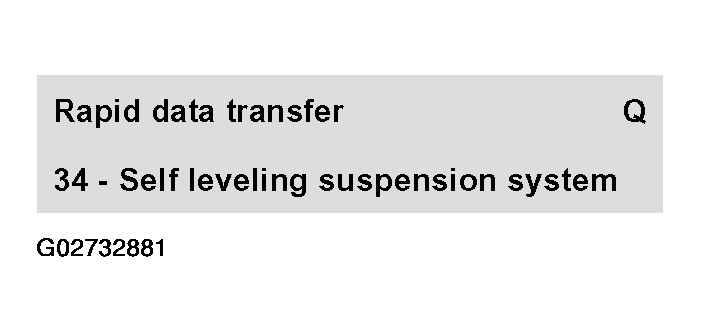

Fig 2: VAG 1551 Scan Tool - 34 - Self Leveling Suspension System

G02732881

Courtesy of AUDI OF AMERICA, INC.

Confirm the entry using the Q button.

Display:

Fig 3: VAG 1551 Scan Tool - Tester Transmits Address Word - 34

G02732882

Courtesy of AUDI OF AMERICA, INC.

The following appears on the display after 5 sec:
Press the --> button.

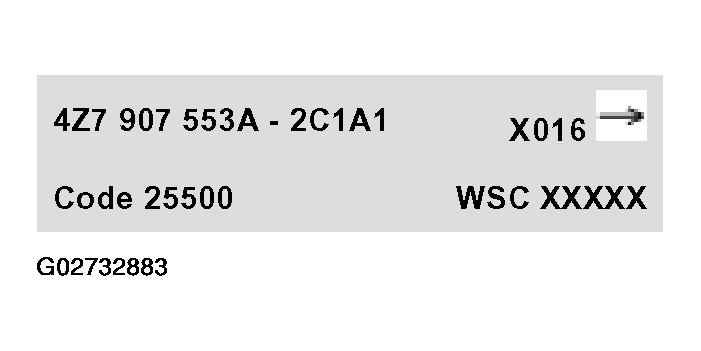

Fig 4: VAG 1551 Scan Tool - Code 25500

G02732883

Courtesy of AUDI OF AMERICA, INC.

Display:

NOTE: An overview of the possible functions is printed out after pressing of the HELP button.

Fig 5: VAG 1551 Scan Tool - Select Function XX

G02732884

Courtesy of AUDI OF AMERICA, INC.
